Synology DS411slim Review

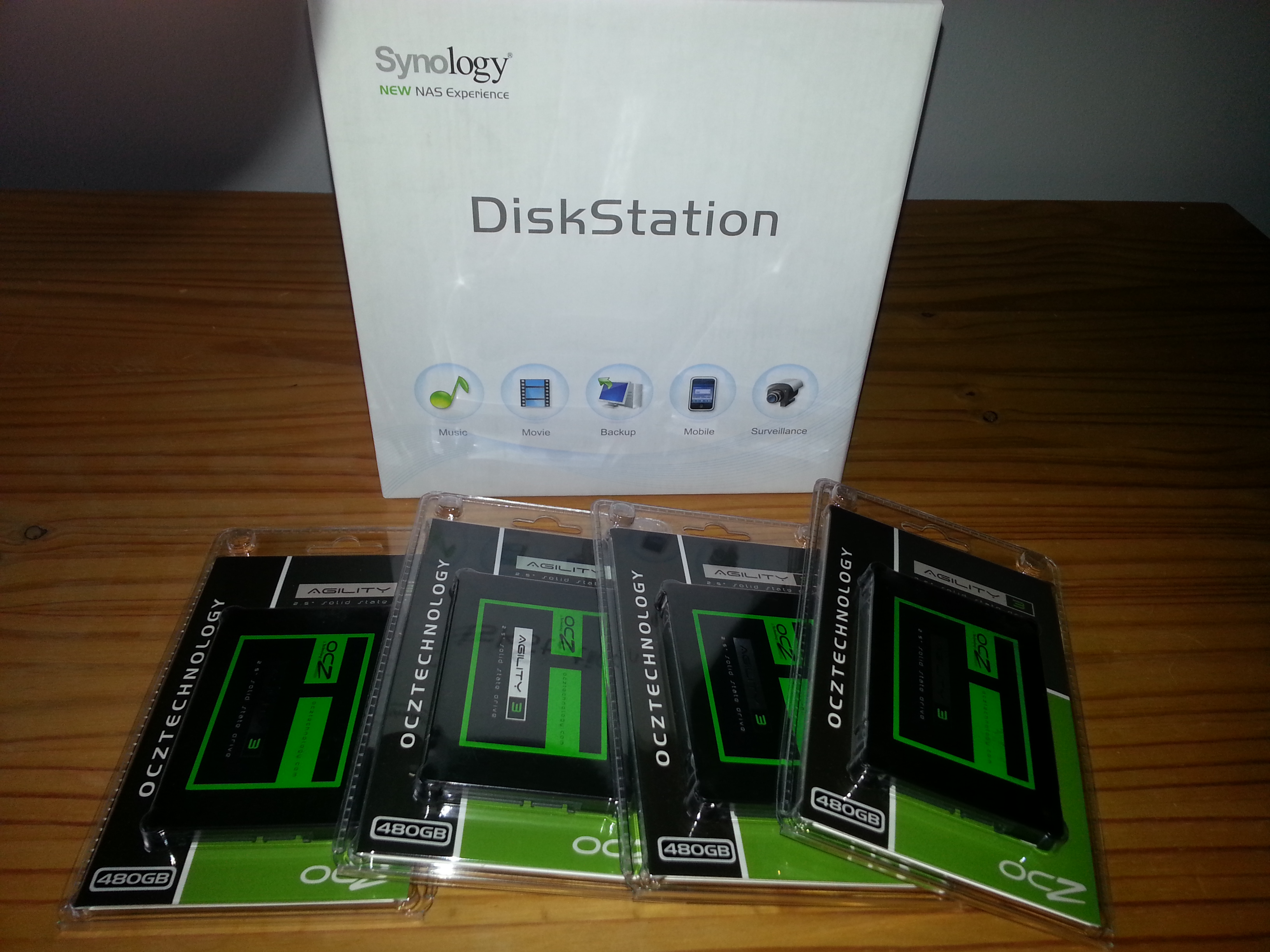

synologyI recently purchased a Synology DS411slim NAS device for my home lab in order to quiet down my rack and start using up less power.  Obviously to accomplish this I would need to fill it up with Solid State drives which have the added benefit of a large number of IOPS 🙂

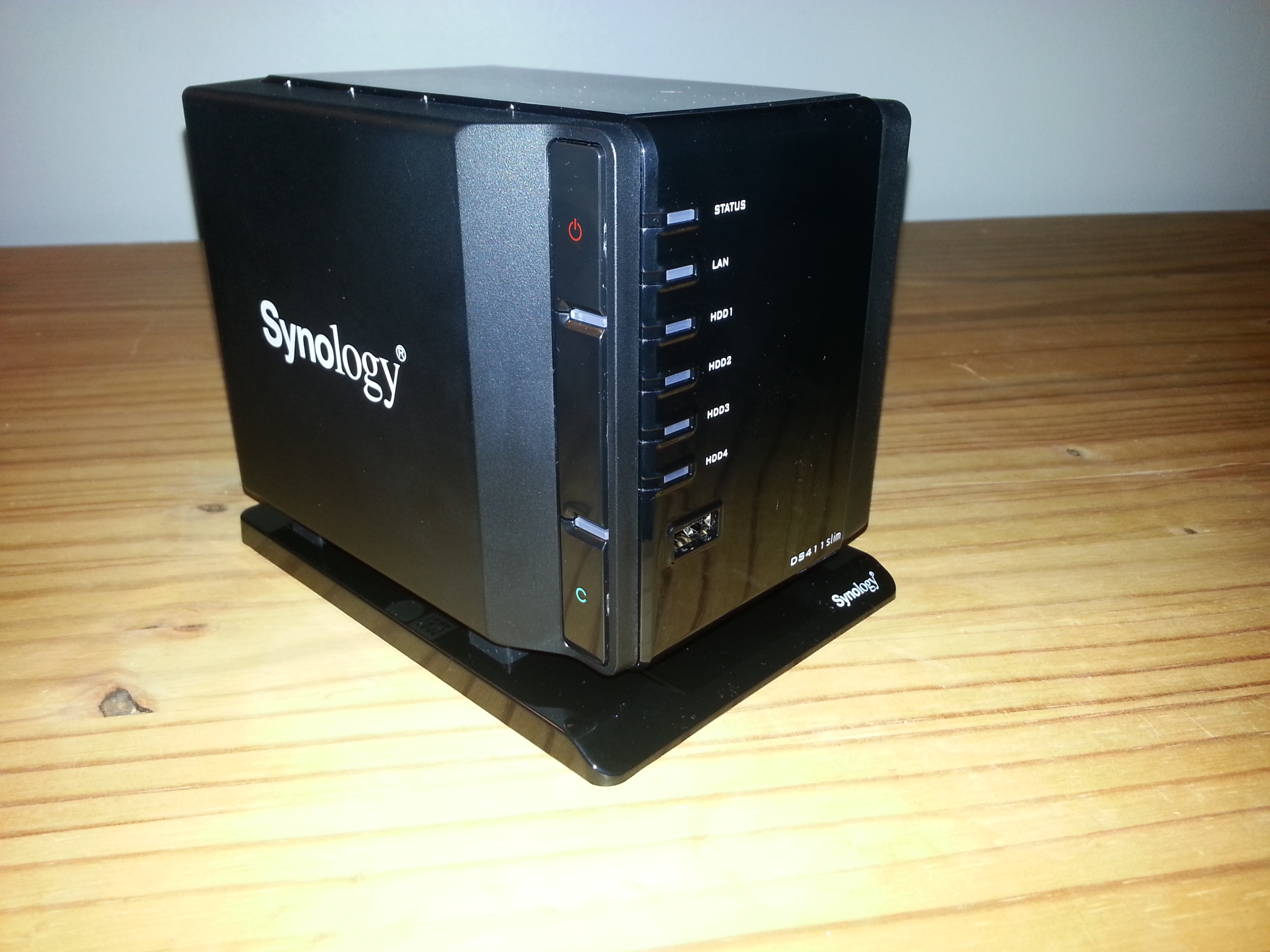

20130608_203157





I screwed my four 480GB OCZ SSD’s into the drive cages and slipped them into the chassis.  Really my only con for this device was getting the drives into the chassis.  I did have to do a bit of wiggling to get them seated correctly.

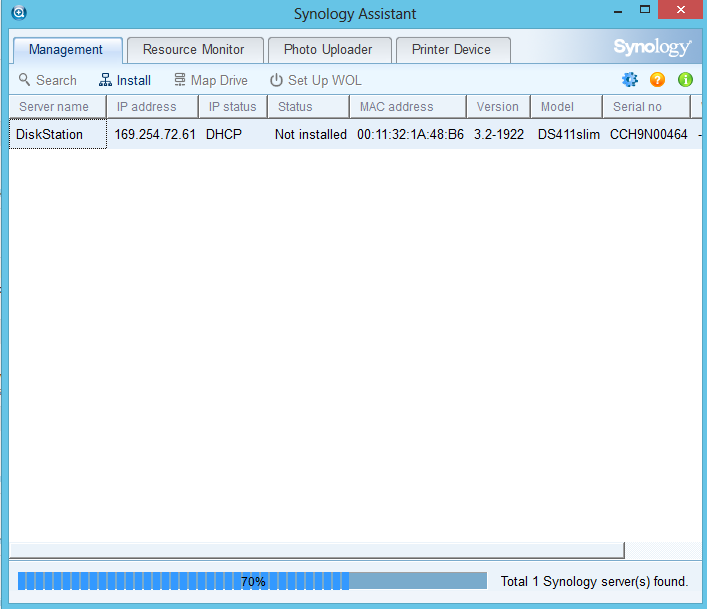

I powered up the device and plugged the NIC into my core switch and ran the installation utility.  The first thing the utility did was run a discovery on the device.

DS411-1

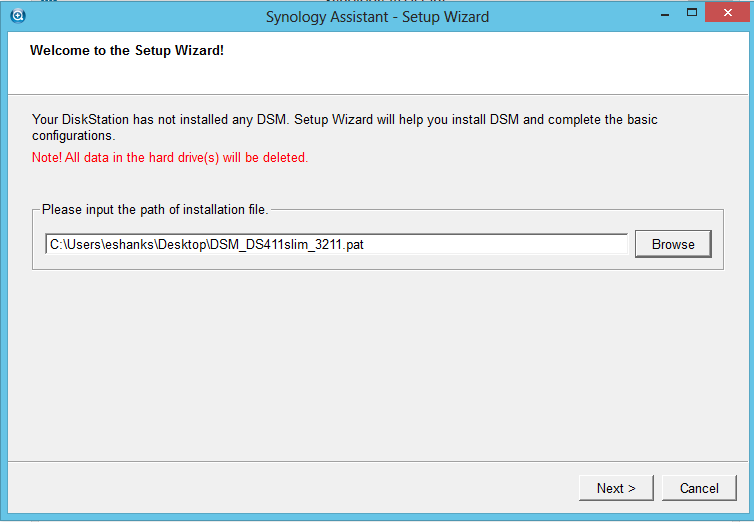

Once the device was found, I pointed it to the DSM which I downloaded from the Synology site.

DS411-2

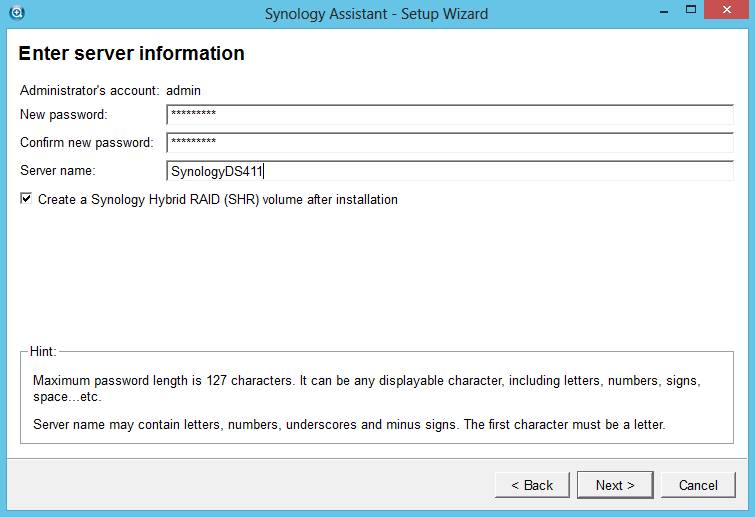

As you might hope, the wizard asks you to change the default password.

DS411-3

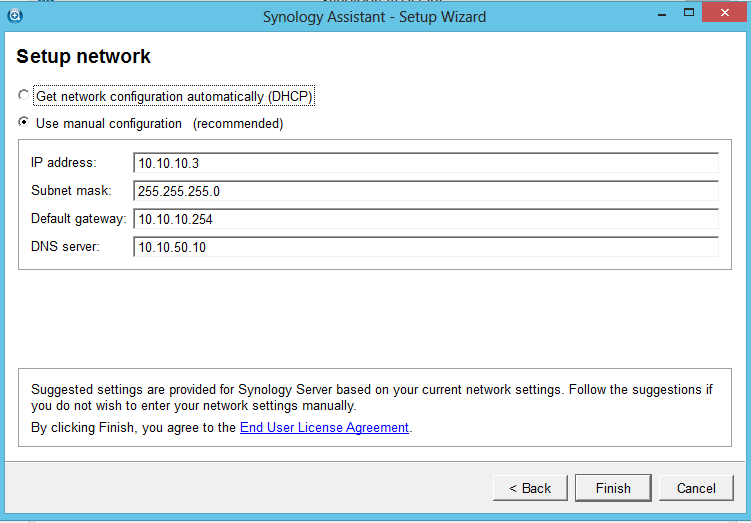

Enter the new IP information for the device.  It will check for an IP address conflict before actually changing it.

DS411-4

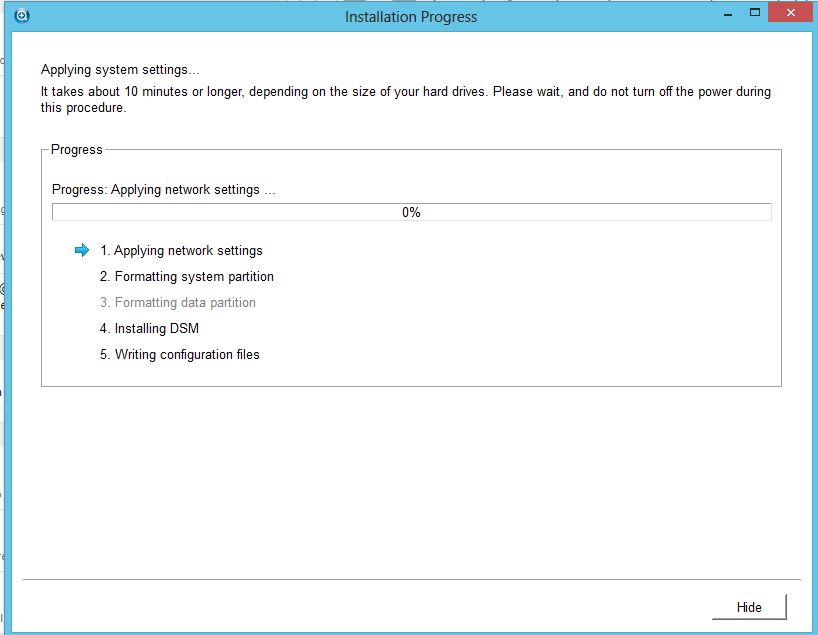

Patiently wait for all of the tasks to complete.

DS411-5

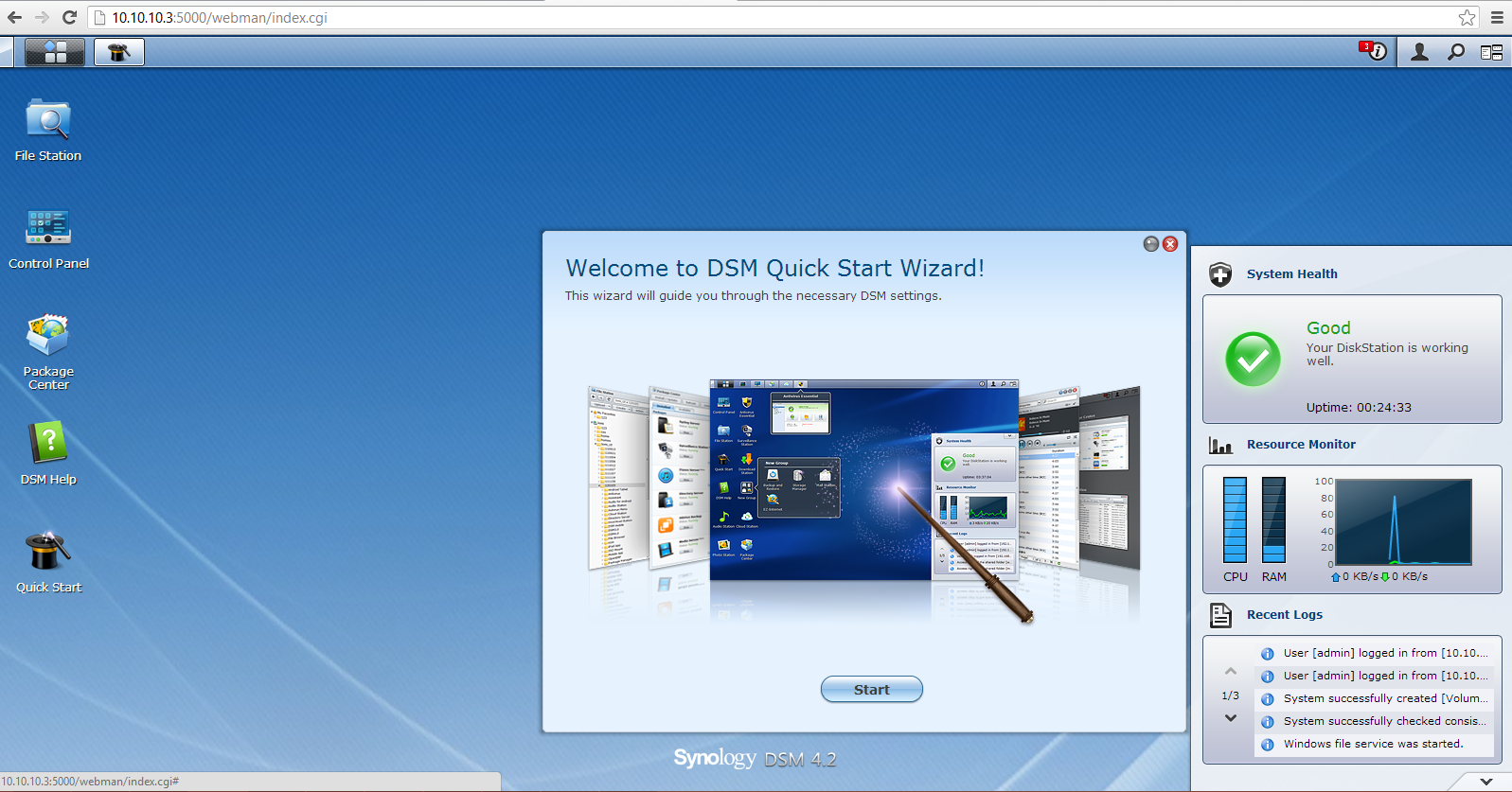

When I was all done, I was able to access the NAS via a web browser.  A quickstart is available to hep you find your way.

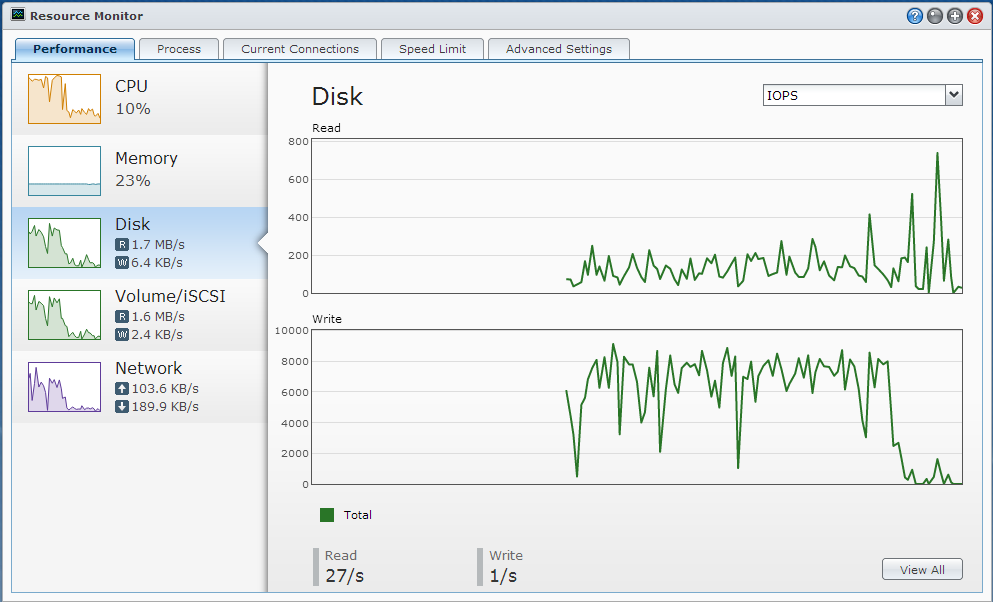

Once it was setup, I found that I got about 8000 IOPS while writing to disk.  Not bad for such a tiny device.

iSCSI-IOPS

2 Responses to Synology DS411slim Review

  1. Are you running kernel 2.6.32.12? I’m surprised the device recognized and initialized your SSD’s….but good that it did. Now then, as to TRIM support, I guess that’s a whole other story…
