It’s quite possible that you could have a Kubernetes cluster but never have to know what an endpoint is or does, even though you’re using them behind the scenes. Just in case you need to use one though, or if you need to do some troubleshooting, we’ll cover the basics of Kubernetes endpoints in this post.

Endpoints – The Theory

During the post where we first learned about Kubernetes Services, we saw that we could use labels to match a frontend service with a backend pod automatically by using a selector. If any new pods had a specific label, the service would know how to send traffic to it. Well the way that the service knows to do this is by adding this mapping to an endpoint. Endpoints track the IP Addresses of the objects the service send traffic to. When a service selector matches a pod label, that IP Address is added to your endpoints and if this is all you’re doing, you don’t really need to know much about endpoints. However, you can have Services where the endpoint is a server outside of your cluster or in a different namespace (which we haven’t covered yet).

What you should know about endpoints is that there is a list of addresses your services will send traffic and its managed through endpoints. Those endpoints can be updated automatically through labels and selectors, or you can manually configure your endpoints depending on your use case.

Endpoints – In Action

Let’s take a look at some endpoints that we’ve used in our previous manifests. Lets deploy this manifest as we did in our previous posts and take a look to see what our endpoints are doing.

apiVersion: apps/v1 #version of the API to use
kind: Deployment #What kind of object we're deploying
metadata: #information about our object we're deploying
  name: nginx-deployment #Name of the deployment
  labels: #A tag on the deployments created
    app: nginx
spec: #specifications for our object
  replicas: 2 #The number of pods that should always be running
  selector: #which pods the replica set should be responsible for
    matchLabels:
      app: nginx #any pods with labels matching this I'm responsible for.
  template: #The pod template that gets deployed
    metadata:
      labels: #A tag on the replica sets created
        app: nginx
    spec:
      containers:
      - name: nginx-container #the name of the container within the pod
        image: nginx #which container image should be pulled
        ports:
        - containerPort: 80 #the port of the container within the pod
---
apiVersion: v1 #version of the API to use
kind: Service #What kind of object we're deploying
metadata: #information about our object we're deploying
  name: ingress-nginx #Name of the service
spec: #specifications for our object
  type: NodePort #Ignore for now discussed in a future post
  ports: #Ignore for now discussed in a future post
  - name: http
    port: 80
    targetPort: 80
    nodePort: 30001
    protocol: TCP
  selector: #Label selector used to identify pods
    app: nginxCode language: PHP (php)

We can deploy this manifest running:

kubectl apply -f [manifest file].ymlCode language: CSS (css)

Now that its done we should be able to see the endpoints that were automatically created when our service selector matched our pod label. To see this we can query our endpoints through kubectl.

kubectl get endpointsCode language: JavaScript (javascript)

Your results will likely have different addresses than mine, but for reference, here are the endpoints that were returned.

The ingress-nginx endpoint is the one we’re focusing on and you can see it has two endpoints listed, both on port 80.

Now those endpoints should be the IP addresses of our pods that we deployed in our manifest. To test this, lets use the get pods command with the -o wide switch to show more output.

kubectl get pods -o wideCode language: JavaScript (javascript)

You can see that the IP addresses associated with the pods matches the endpoints. So we proved that the endpoints are matching under the hood.

How about if we want to manually edit our endpoints if we don’t have a selector? Maybe we’re trying to have a resource to access an external service that doesn’t live within our Kubernetes cluster? We could create our own endpoint to do this for us. A great example might be an external database service for our web or app containers.

Let’s look at an example where we’re using an endpoint to access an external resource from a container. In this case we’ll access a really simple web page just for a test. For reference, I accessed this service from my laptop first to prove that it’s working. If you’re doing this in your lab, you’ll need to spin up a web server and modify the IP Addresses accordingly.

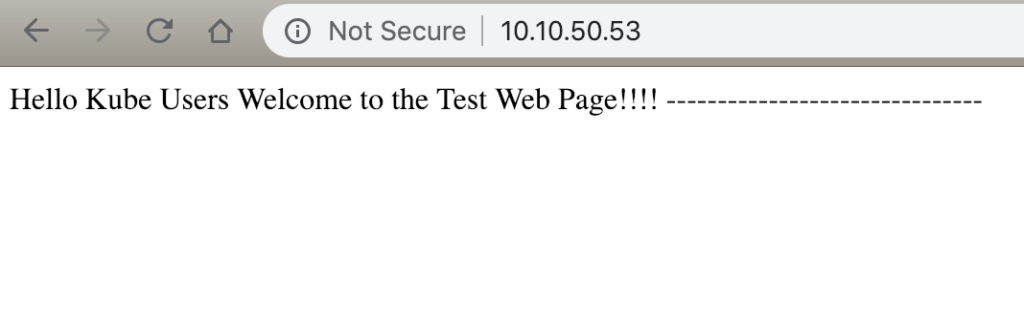

I know that it’s not very exciting, but it’ll get the job done. Next up we’ll deploy our Endpoint and a service with no selector. The following manifest should do the trick. Notice the ports used and the IP Address specified in the endpoint.

  kind: "Service"
  apiVersion: "v1"
  metadata:
    name: "external-web"
  spec:
    ports:
      -
        name: "apache"
        protocol: "TCP"
        port: 80
        targetPort: 80
---
  kind: "Endpoints"
  apiVersion: "v1"
  metadata:
    name: "external-web"
  subsets:
    -
      addresses:
        -
          ip: "10.10.50.53" #The IP Address of the external web server
      ports:
        -
          port: 80
          name: "apache"Code language: PHP (php)

Then we’ll deploy the manifest file to get our service and endpoint built.

kubectl apply -f [manifest file]Code language: CSS (css)

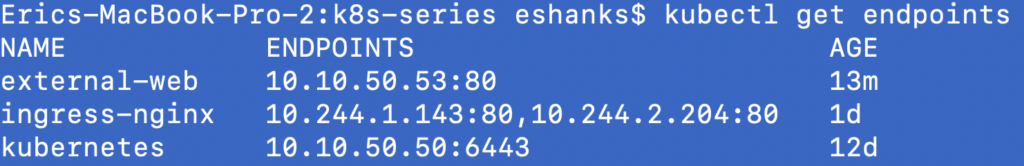

Let’s check the endpoint just to make sure it looks correct.

kubectl get endpointsCode language: JavaScript (javascript)

Once the service and endpoint are deployed, we’ll deploy a quick container into our cluster so we can use it to curl our web page as a test. We’ll use the imperative commands instead of a manifest file this time.

kubectl create -f https://k8s.io/examples/application/shell-demo.yaml

kubectl exec -it shell-demo -- /bin/bash

apt-get update
apt-get install curl
curl external-webCode language: JavaScript (javascript)

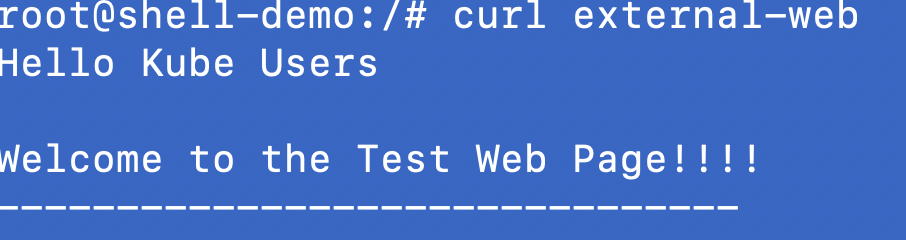

The curl command worked when performing a request against the “external-web” service, so we know it’s working!

Summary

If you’ve been following the series so far, you’ve already been using endpoints but just didn’t know it. You can add your own endpoints manually if you have a use case such as accessing a remote service like a database but for now its probably enough just to get the idea that they exist and that you can modify them if necessary.
