SRM 5.5 VM Replication Configuration

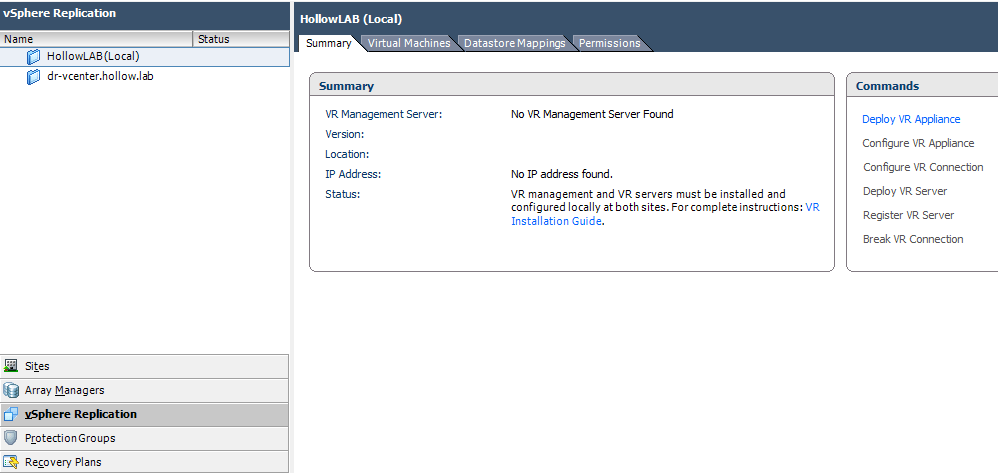

If you plan to use VMware Replication to replicate your VMs, you’ll need to deploy a VR Appliance at each site.  Click the “Deploy VR Appliance” link under the VMware replication tab.VMReplicationSetup1

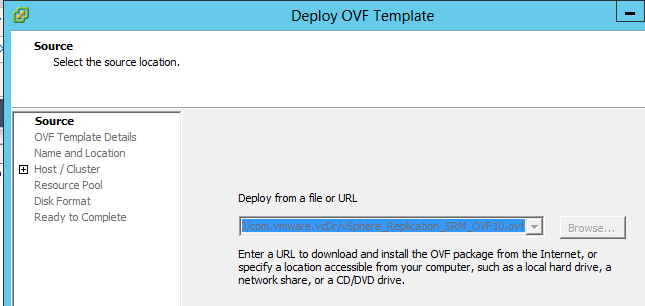

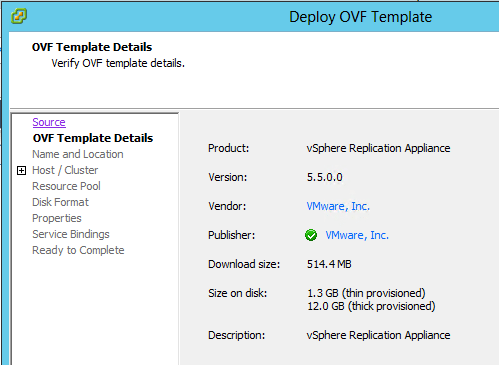

Deploy the OVF template to your desired ClusterHostnetwork and datastore.

VMReplicationSetup2



VMReplicationSetup3

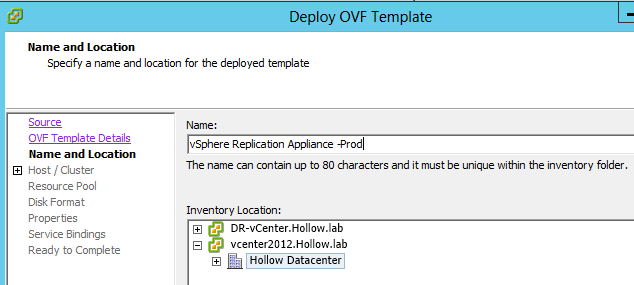

Name your VR appliance and select the inventory location.

VMReplicationSetup4

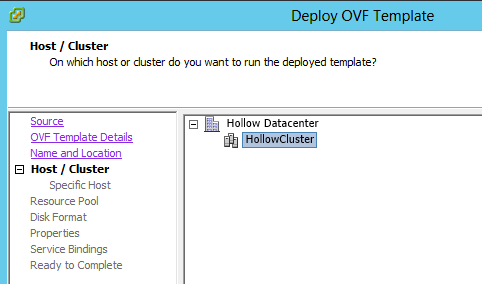

Choose your cluster.

VMReplicationSetup5



Choose a resource pool, or just the cluster name if no resource pools exist.  The cluster itself, acts as a resource pool.

VMReplicationSetup6

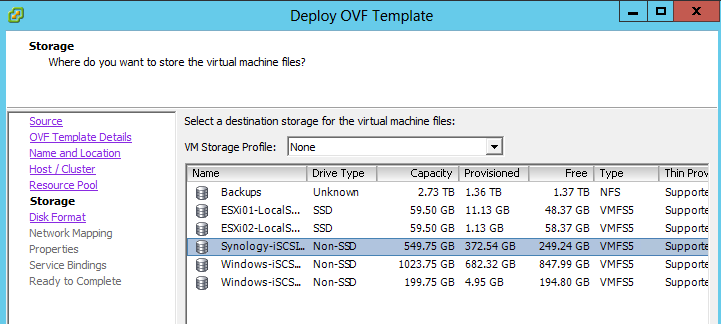

Choose your datastore.

VMReplicationSetup7

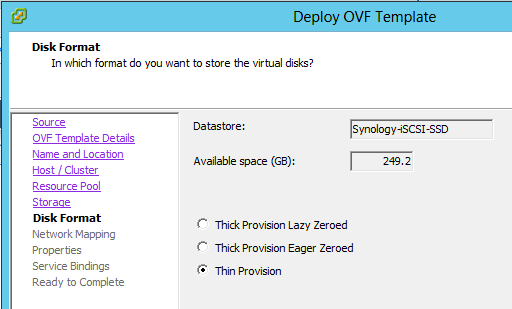

Provision your virtual disks.

VMReplicationSetup8

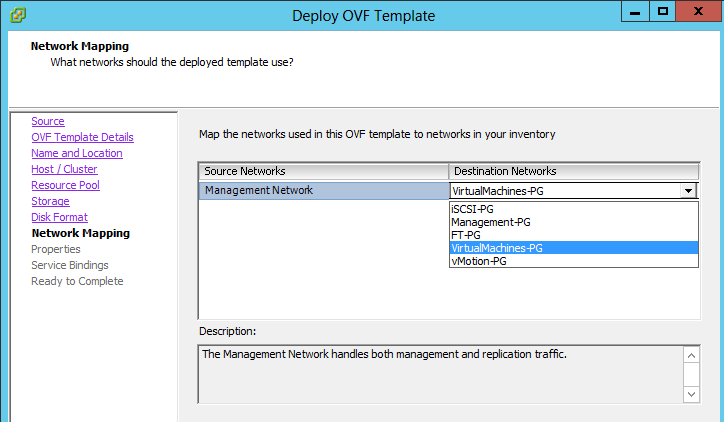

Select your virtual network.  This might be a good time to review you networks again.  It may make sense to create a different network strictly for your replication traffic.

VMReplicationSetup9

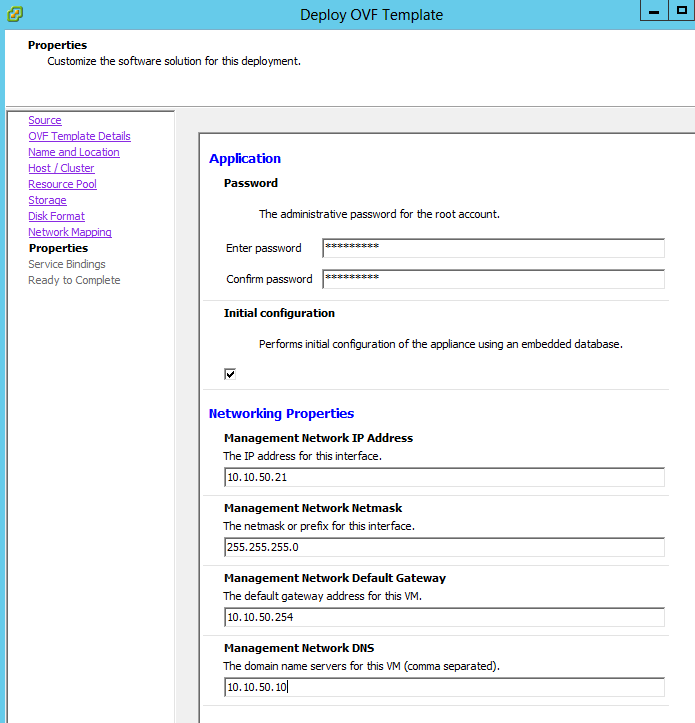

Change the root password for the VR appliance as well as configuring your networking settings.

VMReplicationSetup10

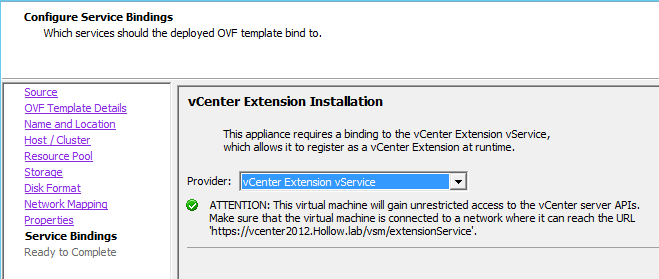

Select the vCenter Extension vService to connect to vCenter.

VMReplicationSetup11

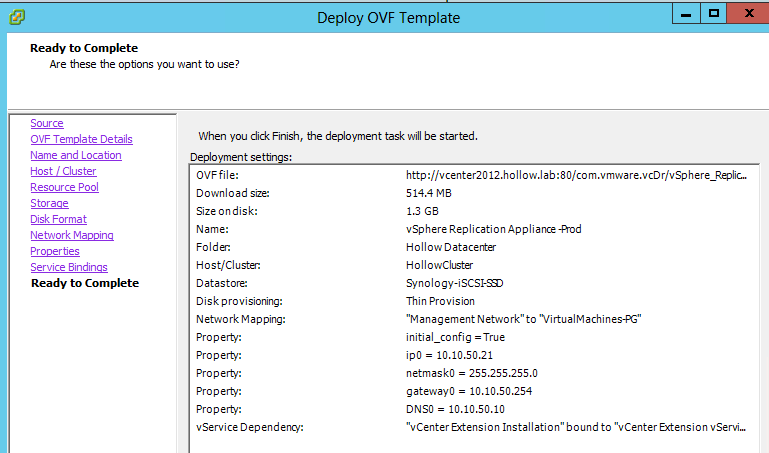

Review the settings and click finish.

VMReplicationSetup12

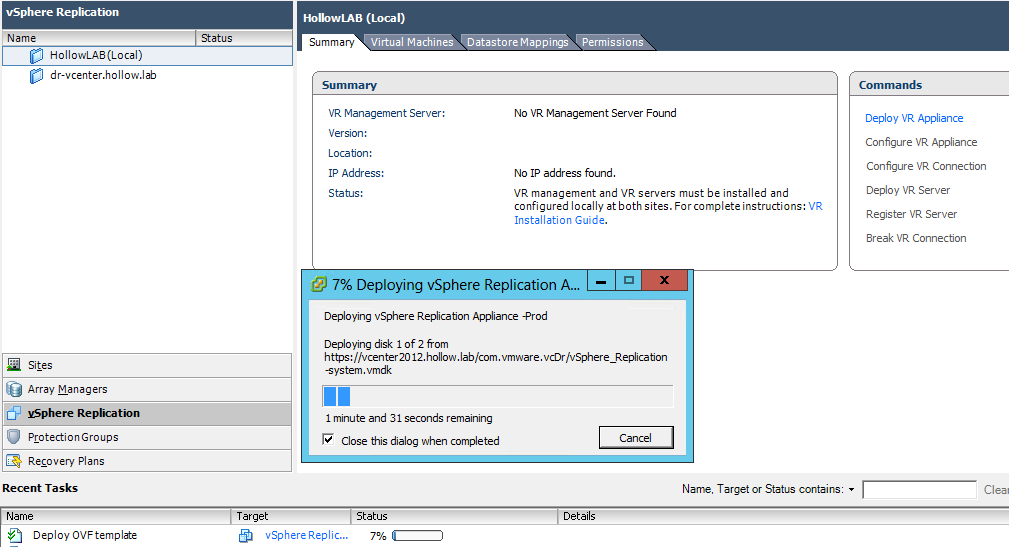

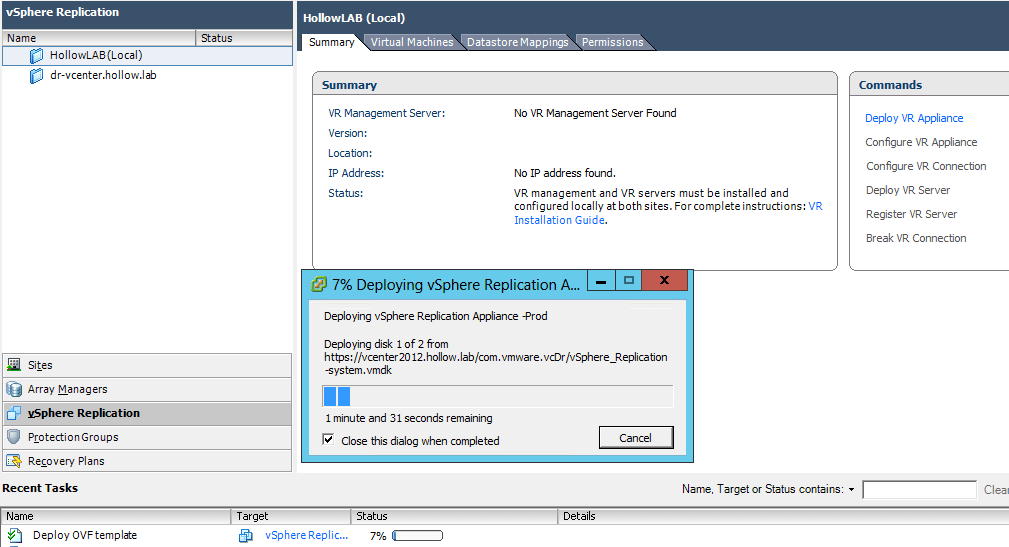

Wait for the replication appiance to deploy the disks and register with vCenter.

VMReplicationSetup13

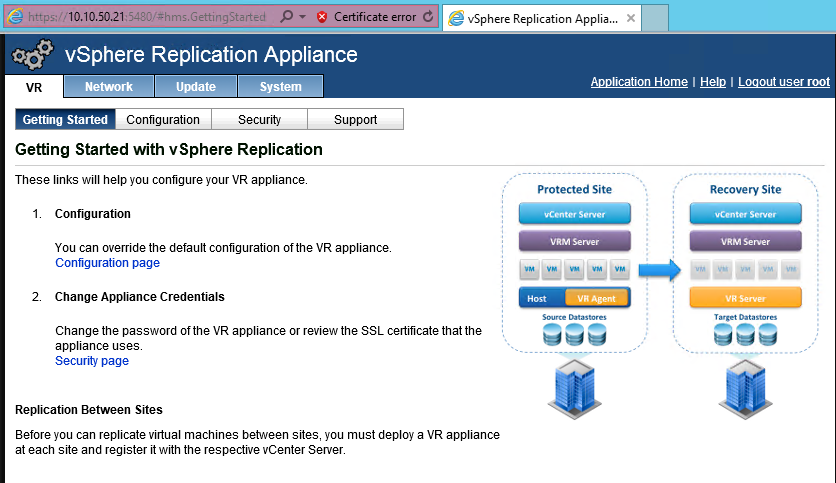

Once the appliance has been deployed, you can use the URL to make further modifications, or upgrade later on.

VMReplicationSetup-Configure-ReplicationAppliance1

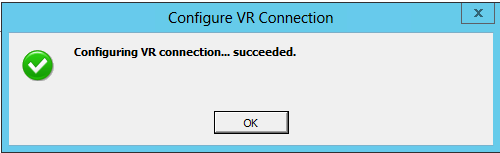

Congratulations!

VMReplicationSetup-Configure-ReplicationAppliance2
