SRM 5.8 Array Based Replication
January 5, 2015If you plan to use Array Based Replication for your SRM implementation, you’ll need to install and configure your Storage Replication Adapter on your SRM Servers. The SRA is used for SRM to communicate with the array to do things like snapshots, and mounting of datastores.
Pair the Arrays
Once your SRAs have been installed in both your sites and you’ve gotten the arrays replicating, you’ll want to pair the arrays in SRM so that they can be used for protection Groups. Open the “Array Based Replication” tab in the “Site Recovery” menu of the web client. Click the Add button.

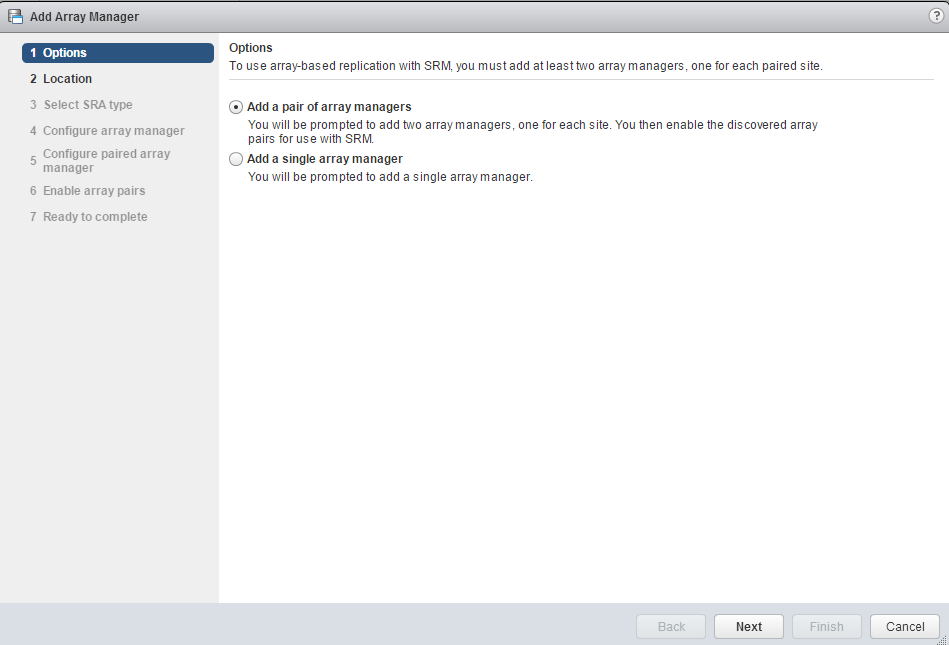

Here, we’ll want to add a pair of array managers (one for each site).

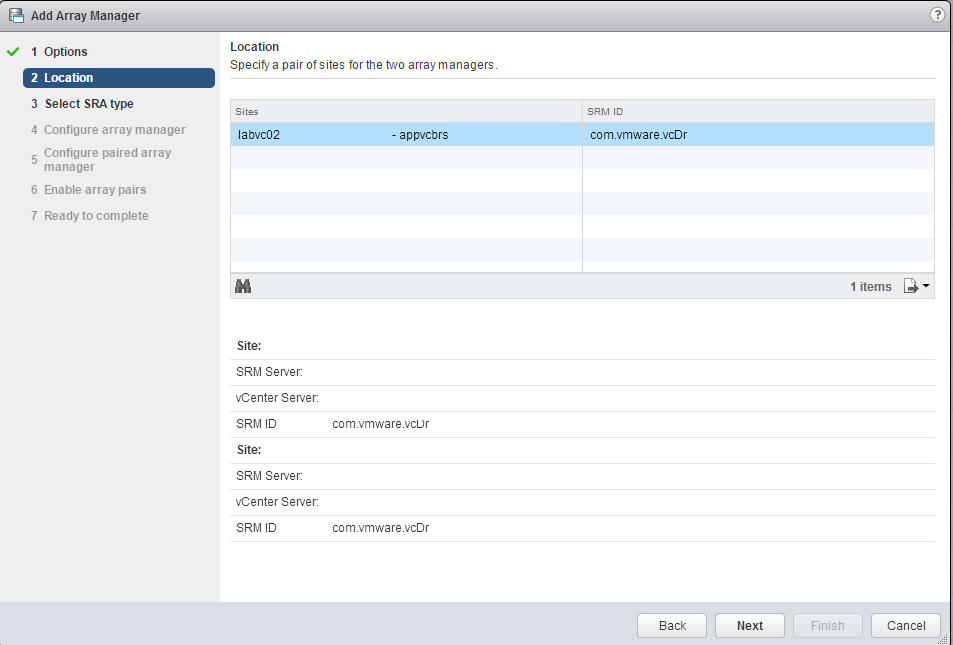

Select the sites that you’ll be workign with.

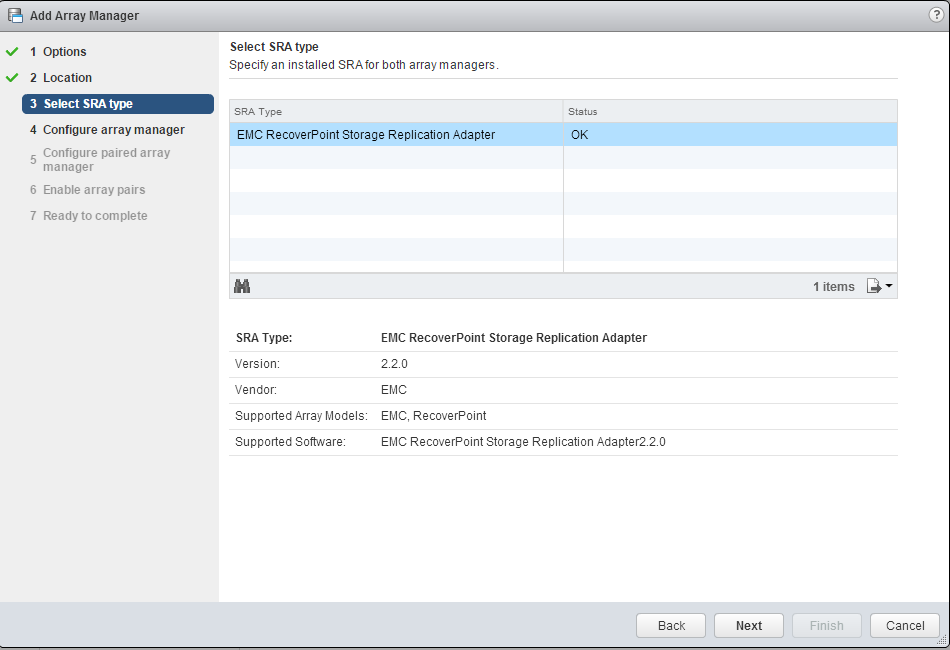

Choose the SRA type. If you only have one SRA installed, only one option should be available. In this case, we’re using EMC RecoverPoint.

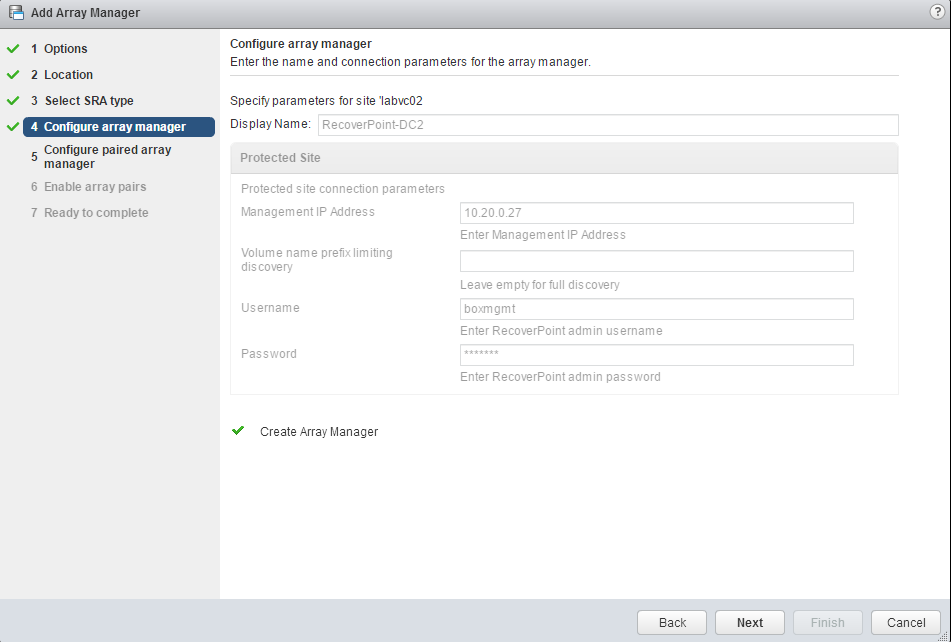

Now, we need to configure the manager with the IP Addresses, and names as well as an account that has enough privileges to create snapshots, as well as mount and unmount LUNs.

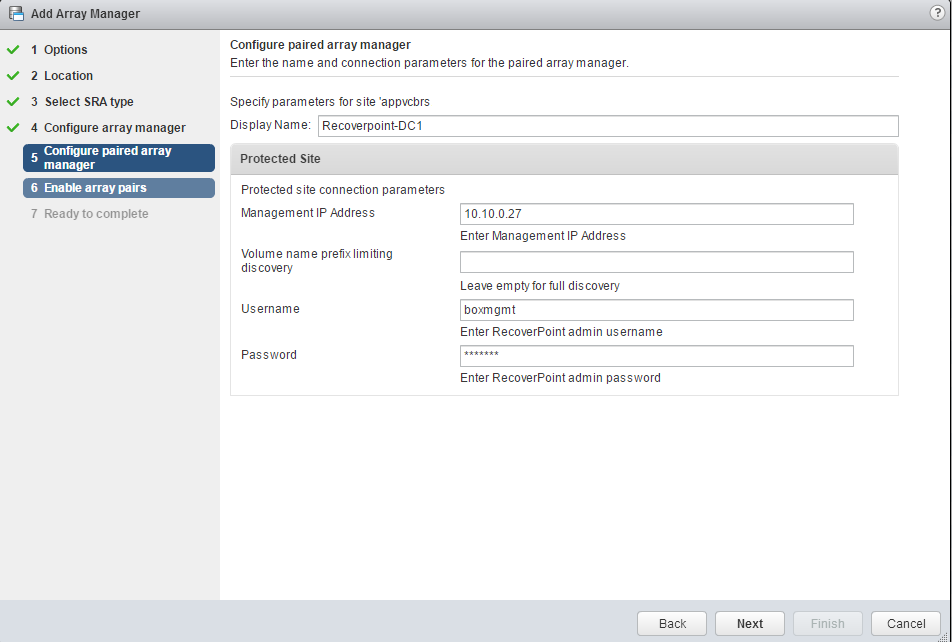

Now we’ll configure the opposite site’s array manager as well. Same rules apply.

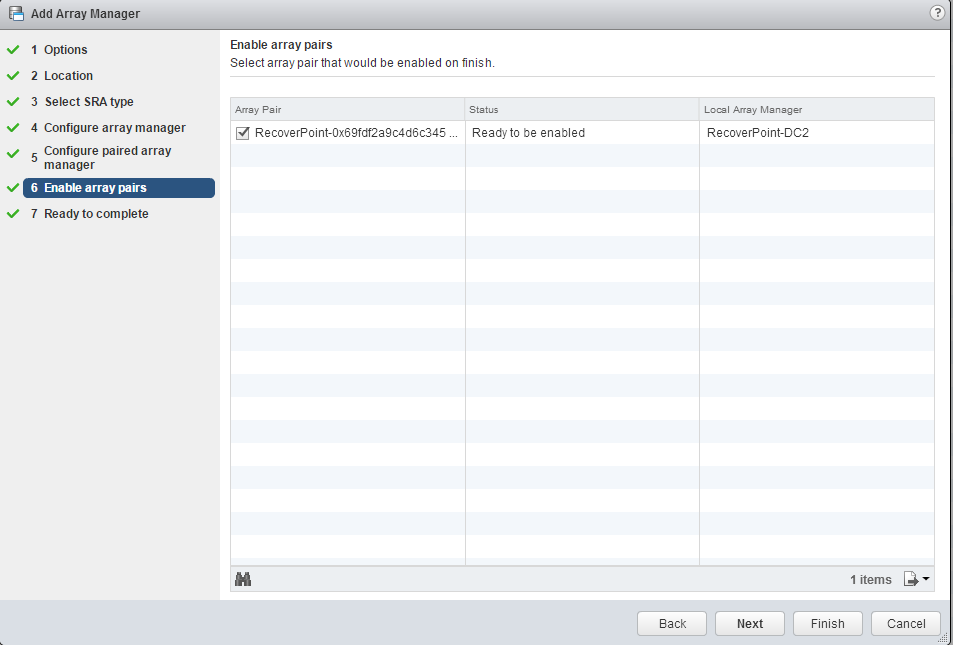

Once we’ve configured the array managers we can enable them which will make them a pair that replicate to each other.

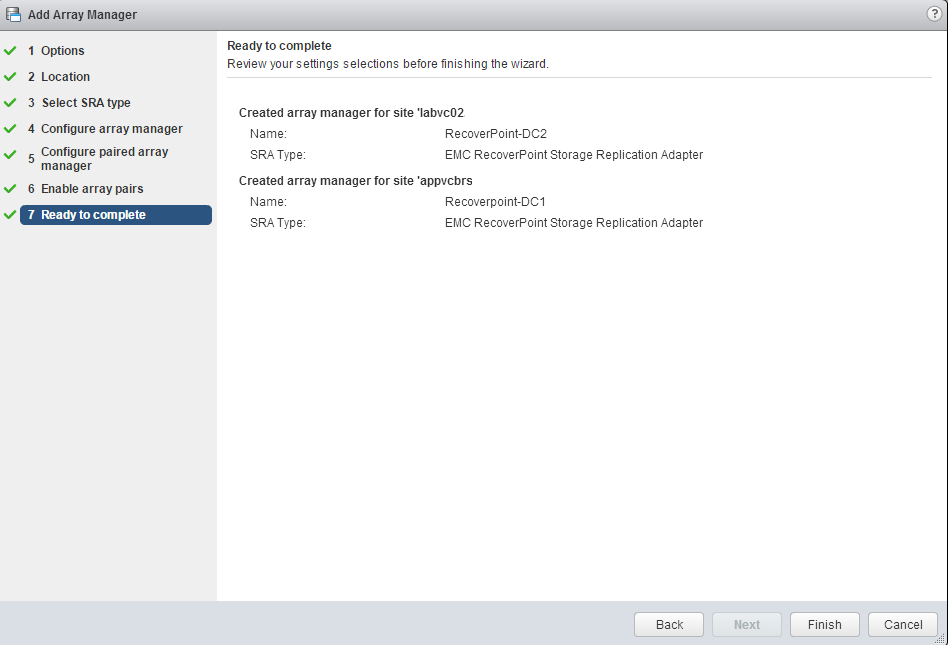

Finish the wizard.
Protection Groups for Arrays

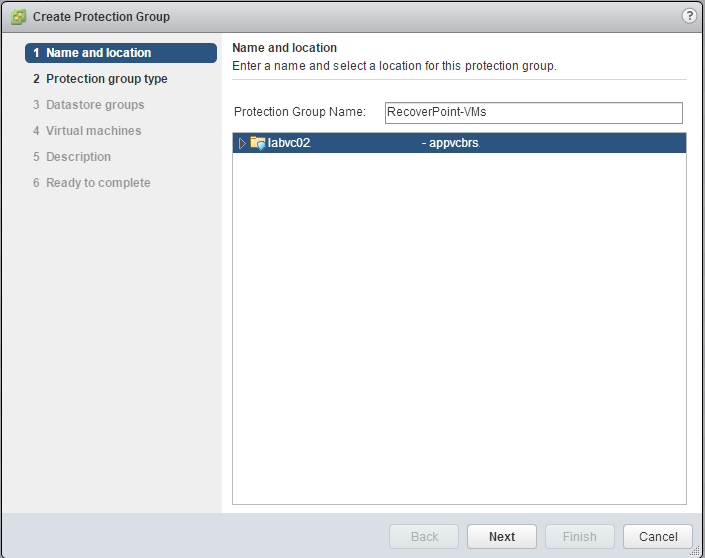

When you create a protection group for virtual machines being replicated by array based replication, you will give it a name as usual, and a site pair.

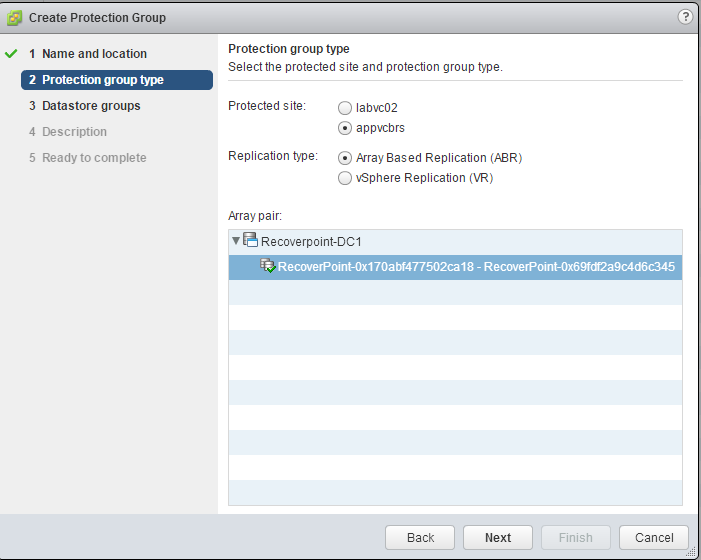

Choose the Protected site and the that it’s an Array Based Pair. Select the pair.

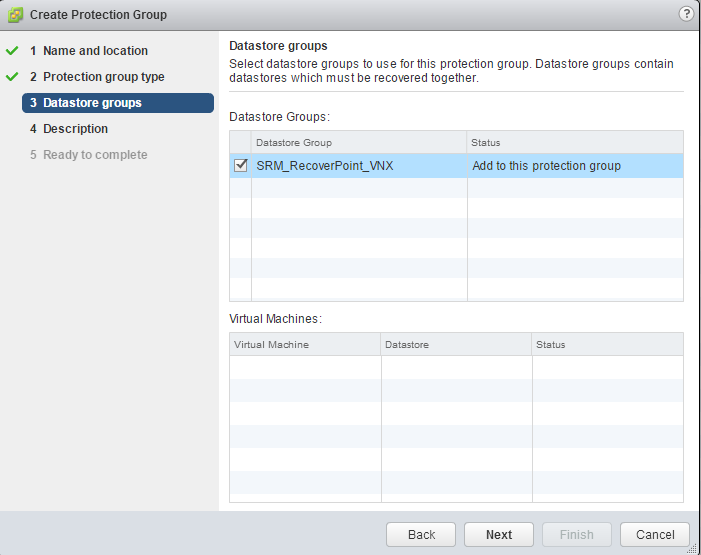

Select the datastores that contain the virtual machines. All of the virtual machines on this array pair will be protected.
Summary
Array based replication does not take much additional effort for VMware Site Recovery Manager, but may take some additional planning to make sure your protection groups are in the right datastores. Remember that all VMs in a datastore will be failed over together.
What about if I am using vr for replication.Do I need to install one appliance at each site before or after paring?
The full upgrade order is listed here: http://pubs.vmware.com/srm-58/index.jsp?topic=%2Fcom.vmware.srm.install_config.doc%2FGUID-E7B47738-C63D-4A05-9A13-7C5FF20801A7.html
I have two types of Storage – EMC VNX and EMC XtremIO
My current setup of SRM is configured with EMC VNX however we have added XtremIO recently and have got dedicated EMC RPA devices dedicated for EMC XtremIO
Question: As EMC SRA is already installed on my SRM servers, Is it okay to add another Array (EMC XtremIO) which will be using dedicated EMC Recovery Point.
In a nutshell I will be having two Arrays in one setup, VNX datastores VMs will be using existing SRA and XtremIO datastores VMs will be using new SRA config (new Array)
You should consult the array vendors documentation. You likely need a second sea installed here. The SRA acts as a driver/agent to communicate with the array.
