Kubernetes Resource Requests and Limits

Containerizing applications and running them on Kubernetes doesn’t mean we can forget all about resource utilization. Our thought process may have changed because we can much more easily scale-out our application as demand increases, but many times we need to consider how our containers might fight with each other for resources. Resource Requests and Limits can be used to help stop the “noisy neighbor” problem in a Kubernetes Cluster.

Resource Requests and Limits – The Theory

Kubernetes uses the concept of a “Resource Request” and a “Resource Limit” when defining how many resources a container within a pod should receive. Lets look at each of these topics on their own, starting with resource requests.

Resource Requests

To put things simply, a resource request specifies the minimum amount of resources a container needs to successfully run. Thought of in another way, this is a guarantee from Kubernetes that you’ll always have this amount of either CPU or Memory allocated to the container.

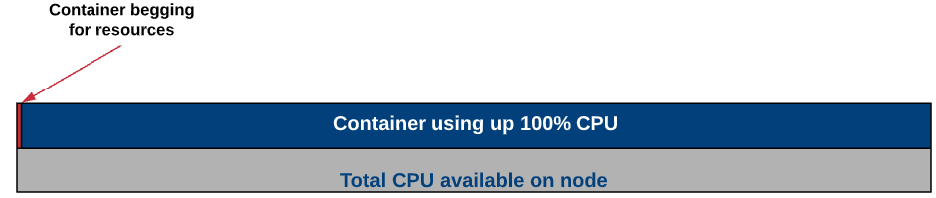

Why would you worry about the mimimum amount of resources guaranteed to a pod? Well, its to help prevent one container from using up all the node’s resources and starving the other containers from CPU or memory. For instance if I had two containers on a node, one container could request 100% of that nodes processor. Meanwhile the other container would likely not be working very well because the processor is being monopolized by its “noisy neighbor”.

What a resource request can do, is to ensure that at least a small part of that processor’s time is reserved for both containers. This way if there is resource contention, each pod will have a guaranteed, minimum amount of resource in which to still function.

Resource Limits

As you might guess, a resource limit is the maximum amount of CPU or memory that can be used by a container. The limit represents the upper bounds of how much CPU or memory that a container within a pod can consume in a Kubernetes cluster, regardless of whether or not the cluster is under resource contention.

Limits prevent containers from taking up more resources on the cluster than you’re willing to let them.

Common Practices

As a general rule, all containers should have a request for memory and cpu before deploying to a cluster. This will ensure that if resources are running low, your container can still do the minimum amount of work to stay in a healthy state until those resource free up again (hopefully).

Limits are often used in conjunction with requests to create a “guaranteed pod”. This is where the request and limit are set to the same value. In that situation, the container will always have the same amount of CPU available to it, no more or less.

At this point you may be thinking about adding a high “request” value to make sure you have plenty of resource available for your container. This might sound like a good idea, but have dramatic consequences to scheduling on the Kubernetes cluster. If you set a high CPU request, for example 2 CPUs, then your pod will ONLY be able to be scheduled on Kubernetes nodes that have 2 full CPUs available that aren’t reserved by other pods’ requests. In the example below, the 2 vCPU pod couldn’t be scheduled on the cluster. However, if you were to lower the “request” amount to say 1 vCPU, it could.

Resource Requests and Limits – In Action

CPU Limit Example

Lets try out using a CPU limit on a pod and see what happens when we try to request more CPU than we’re allowed to have. Before we set the limit though, lets look at a pod with a single container under normal conditions. I’ve deployed a resource consumer container in my cluster and be default, you can see that I’m use 1m CPU(cores) and 6 Mi(bytes) of memory.

NOTE: CPU is measured in millicores so 1000m = 1 CPU core. Memory is measured in Megabytes.

Ok, now that we’ve seen the “no load” state, lets add some CPU load by making a request to the pod. Here, I’ve increased the CPU usage on the container to 400 millicores.

After the metrics start coming in, you can see that I’ve got roughly 400m used on the container as you’d expect to see.

Now I’ve deleted the container and we’ll edit the deployment manifest so that it has a limit on CPU.

apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    run: resource-consumer
  name: resource-consumer
  namespace: default
spec:
  progressDeadlineSeconds: 600
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      run: resource-consumer
  strategy:
    rollingUpdate:
      maxSurge: 25%
      maxUnavailable: 25%
    type: RollingUpdate
  template:
    metadata:
      labels:
        run: resource-consumer
    spec:
      containers:
      - image: theithollow/resource-consumer:v1
        imagePullPolicy: IfNotPresent
        name: resource-consumer
        terminationMessagePath: /dev/termination-log
        terminationMessagePolicy: File
        resources:
          requests:
            memory: "100Mi"
            cpu: "100m"
          limits:
            memory: "300Mi"
            cpu: "300m"
      dnsPolicy: ClusterFirst
      restartPolicy: Always
      schedulerName: default-scheduler
      securityContext: {}
      terminationGracePeriodSeconds: 30
Code language: JavaScript (javascript)

In the container resources section I’ve set a limit on CPU to 300m. Lets re-deploy this yaml manifest and then again increase our resource usage to 400m.

After redeploying the container and again increasing my CPU load to 400m, we can see that the container is throttled to 300m instead. I’ve effectively “limited” the resources the container could consume from the cluster.

CPU Requests Example

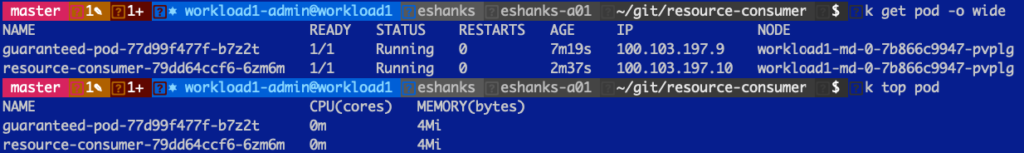

OK, next, I’ve deployed two pods into my Kubernetes cluster and those pods are on the same worker node for a simple example about contention. I’ve got a guaranteed pod that has 1000m CPU set as a limit but also as a request. The other pod is unbounded, meaning there is no limit on how much CPU it can utilize.

After the deployment, each pod is really not using any resources as you can see here.

I make a request to increase the load on my non-guaranteed pod.

And if we look at the containers resources you can see that even though my container wants to use 2000m CPU, it’s only actually using 1000m CPU. The reason for this is because the guaranteed pod is guaranteed 1000m CPU, whether it is actively using that CPU or not.

Summary

Kubernetes uses Resource Requests to set a minimum amount of resources for a given container so that it can be used if it needs it. You can also set a Resource Limit to set the maximum amount of resources a pod can utilize.

Taking these two concepts and using them together can ensure that your critical pods always have the resources that they need to stay healthy. They can also be configured to take advantage of shared resources within the cluster.

Be careful setting resource requests too high so your Kubernetes scheduler can still scheduler these pods. Good luck!
