Last week was packed full of announcements since Microsoft Ignite and EMC World were two large trade shows happening simultaneously.  One announcement that excited me was a free virtual storage appliance from EMC.  The appliance has the same look and feel of a VNXe but is completely virtual. You know what that means?  HomeLab

If you’re like me, you like to tinker with things in a lab environment so as to not destroy a critical production network.  Also, if you happen to write posts on things like VMware Site Recovery Manager, you’ll want to have a storage array that can replicate to a second one.  That leaves you with the Netapp Simulator or the HP StoreVirtual appliance unless you want to actually buy two storage arrays.  (That ain’t cheap).  Well, now we have the EMC vVNX.

Installation

Download the Appliance from the EMC Site. The installation is a very simple OVA deployment for your vSphere environment.  Be cautious though, this appliance wants 2 vCPU and 12 GB of memory which can be taxing on a home lab.  You’ll also map a management NIC to a portgroup and two data ports to two additional port groups.  Once you’ve deployed the OVA, open a web browser and go to the IP Address of the appliance.

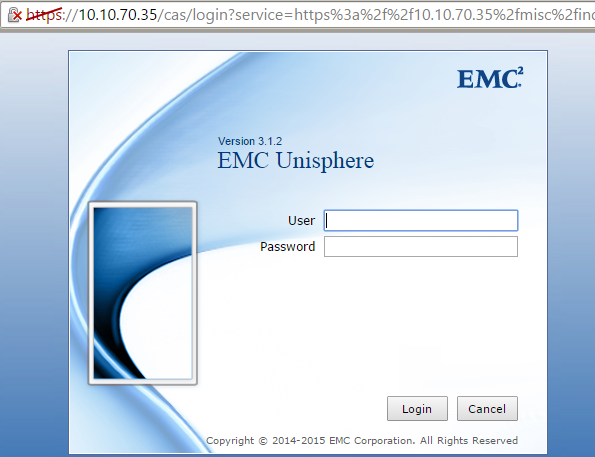

Login with the default username and password.

Username: admin , Password: Password123#

vvnxinstall1

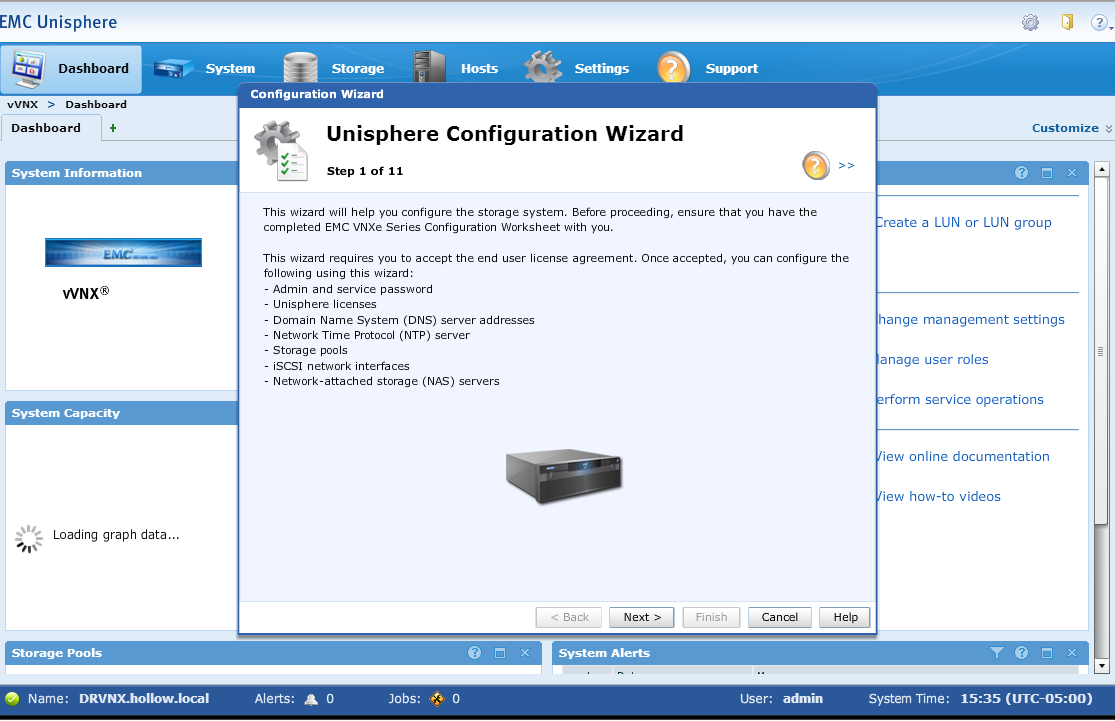

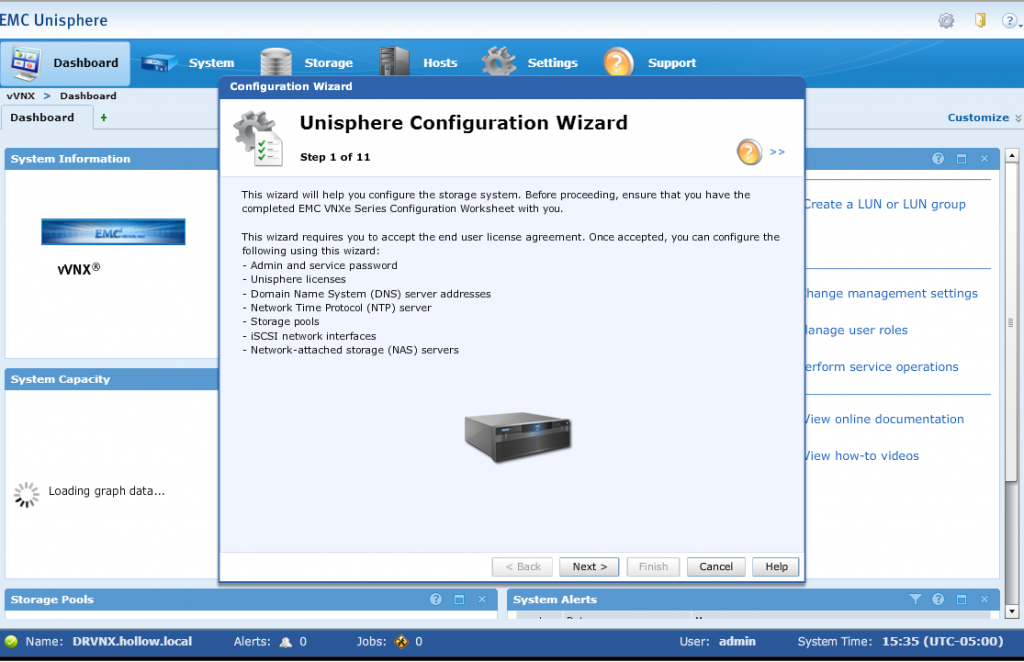

Once you login, there is a nifty little wizard to get you started.  Click Next to get going.vvnxinstall2

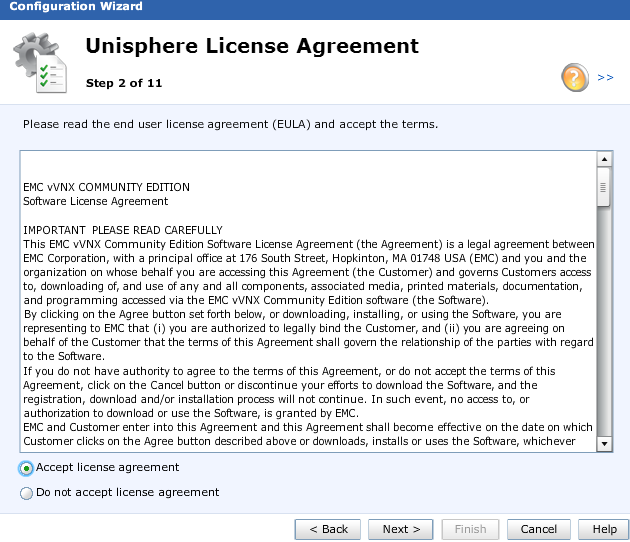

Read and accept the End User License Agreement.  (Pop Quizzes happen sometimes, Be ready to answer questions about the EULA)vvnxinstall3

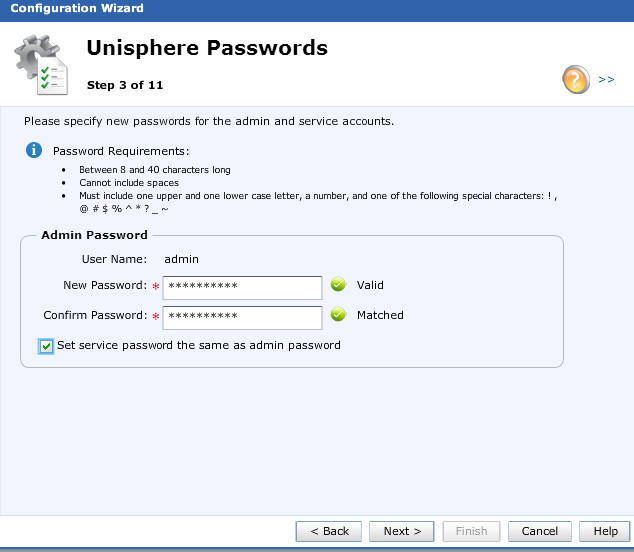

Change the default password.  Always a good idea.  Click Next.vvnxinstall4

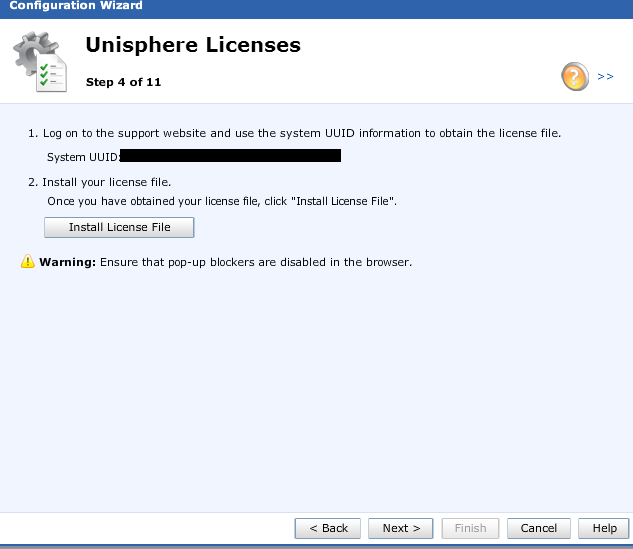

Go to the EMC Support site and enter the System UUID in the portal.  This will generate a license file to allow for full functionality of the storage appliance.vvnxinstall5

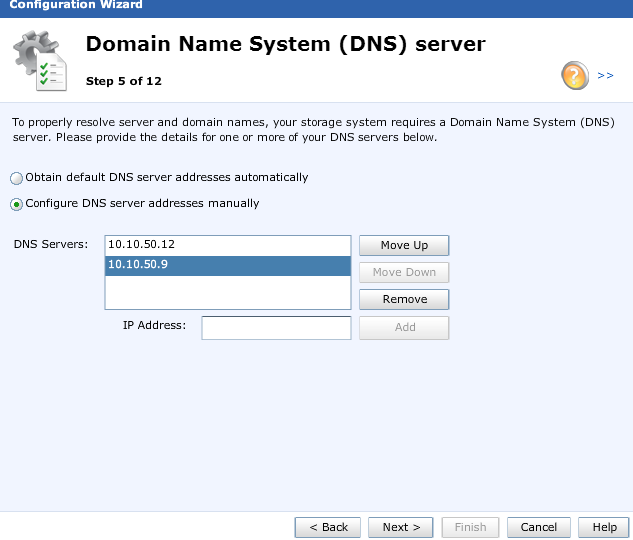

Add DNS Servers and click next.vvnxinstall6

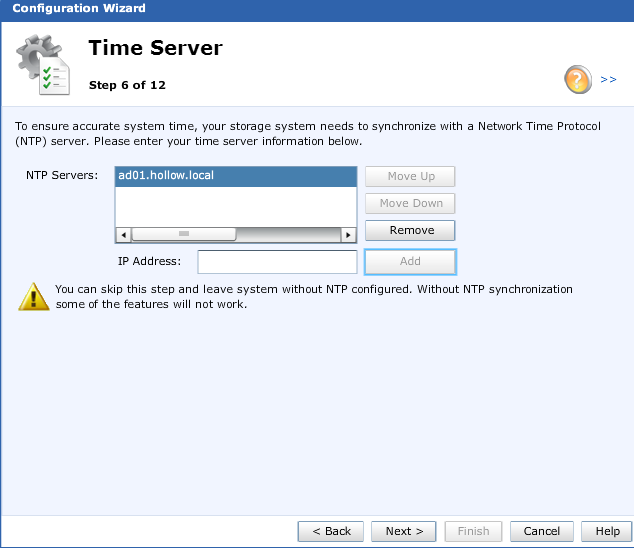

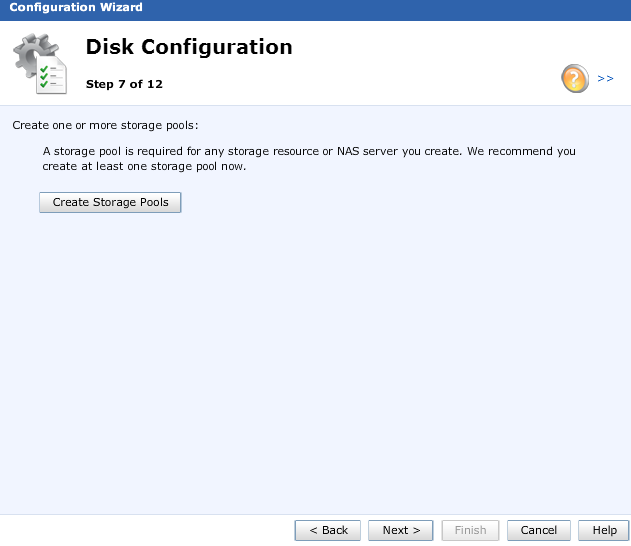

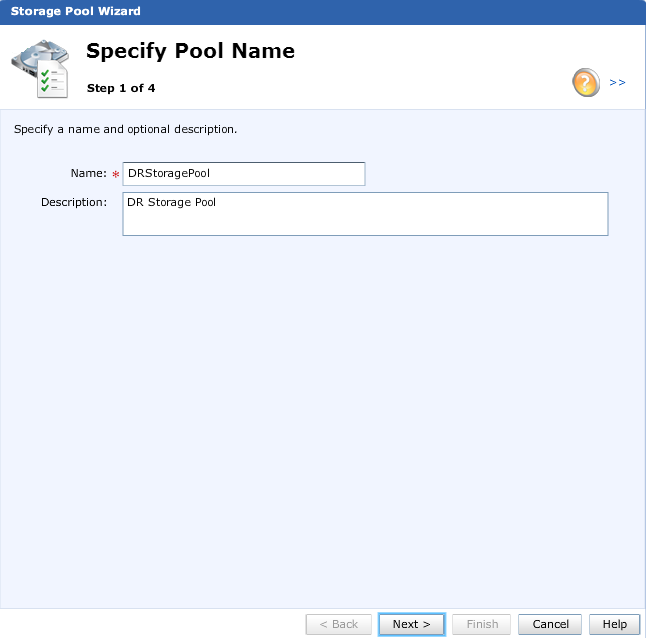

Add a time server and click next.vvnxinstall7 Stop!  When you get to the disk configuration take a second and add a new virtual disk to the vVNX array in vSphere.  The disk you add will be the disk used to create a storage pool.  If you don’t add a virtual disk to the appliance, no pools can be created.  Once you’ve added the disk, click the “Create Storage Pools” button.vvnxinstall8 Give the pool a name.  This is my Disaster Recovery appliance so I called it DRStoragePool.  (Clever don’t you think)vvnxinstall9

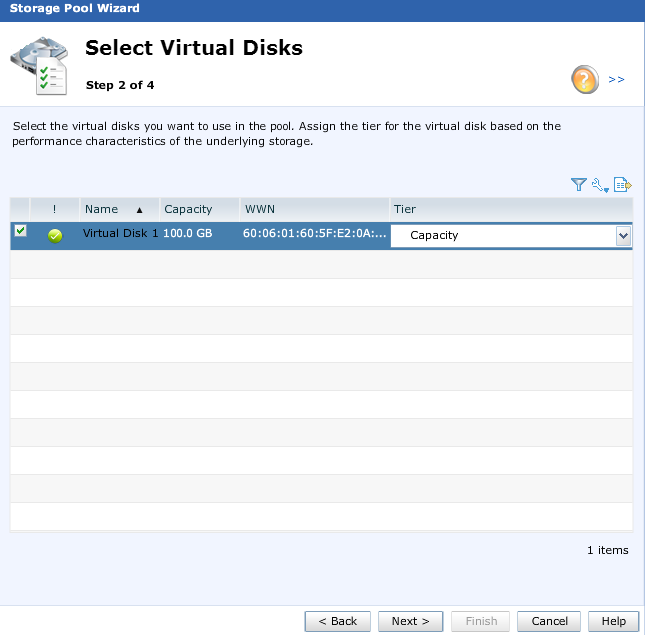

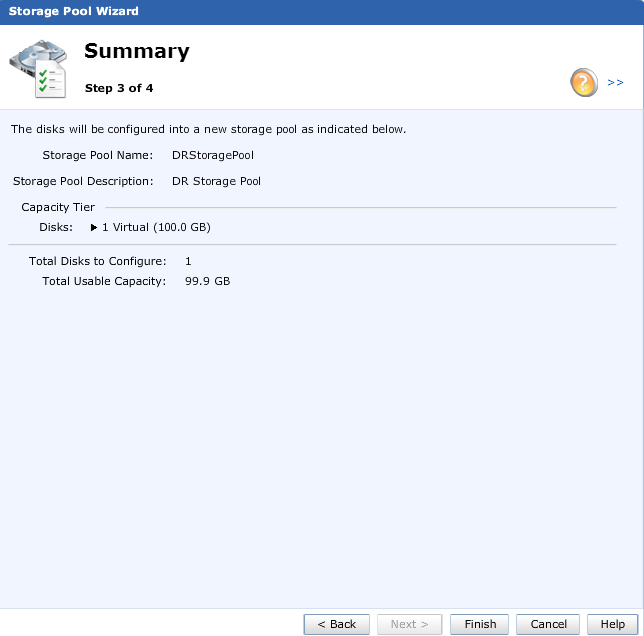

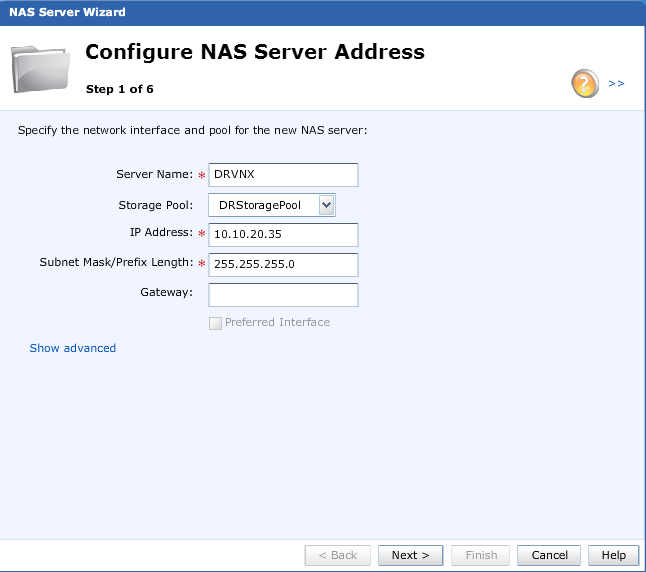

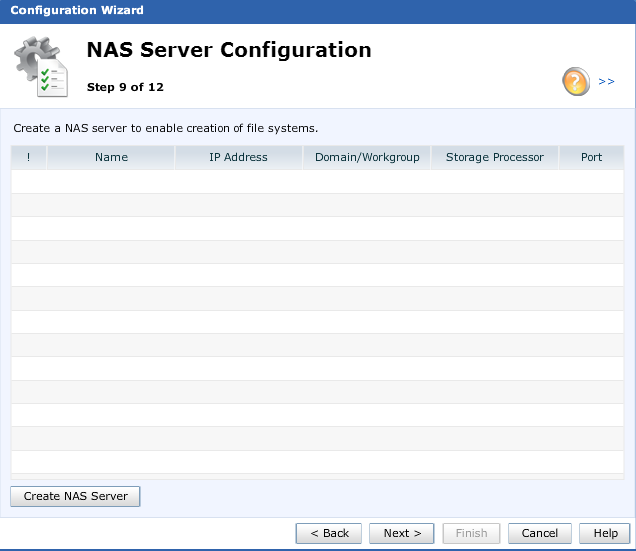

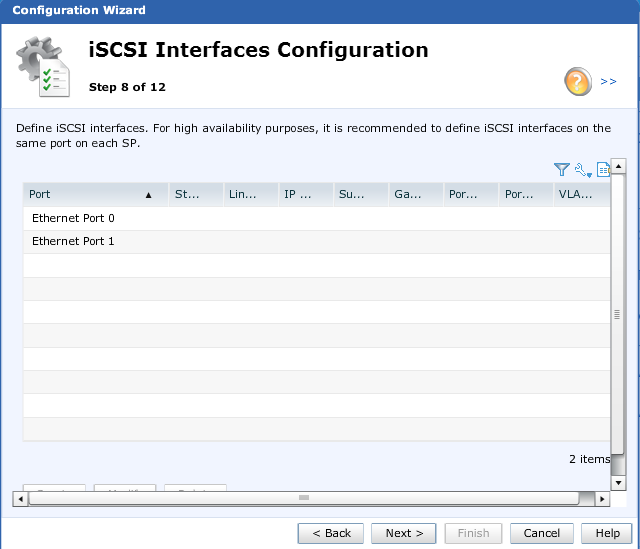

Select the disk that you added earlier.  You’ll also select a tier.  This could be important if you’ve got both SSD virtual disks assigned, as well as spinning disks.  In my case all of the virtual disks I’ve added are tiered on my Synology Storage Array so I just picked capacity.vvnxinstall10 Review the summary screen and click Finish.vvnxinstall11 Add any iSCSI interfaces that you want to use.  I plan on using NFS so I just clicked next.vvnxinstall12 Add a NAS Server if you plan to use NFS.  (Like I am)vvnxinstall13Give the NFS Server a name and point it to a storage pool created earlier.  Enter an IP Address for the NAS appliance and click next.

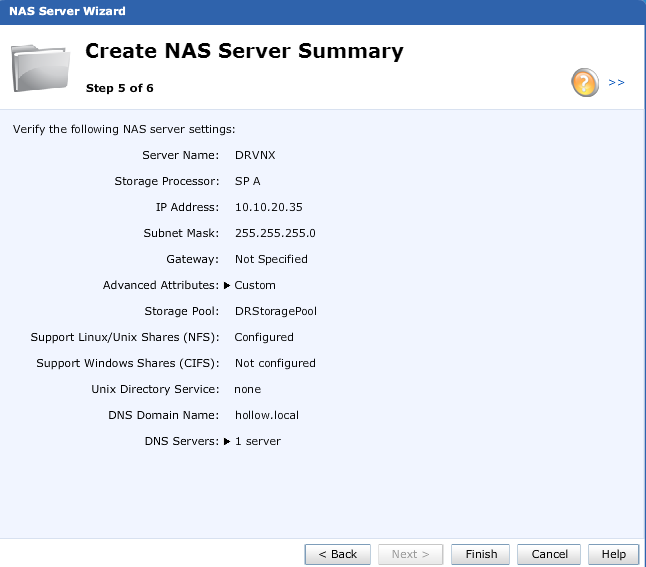

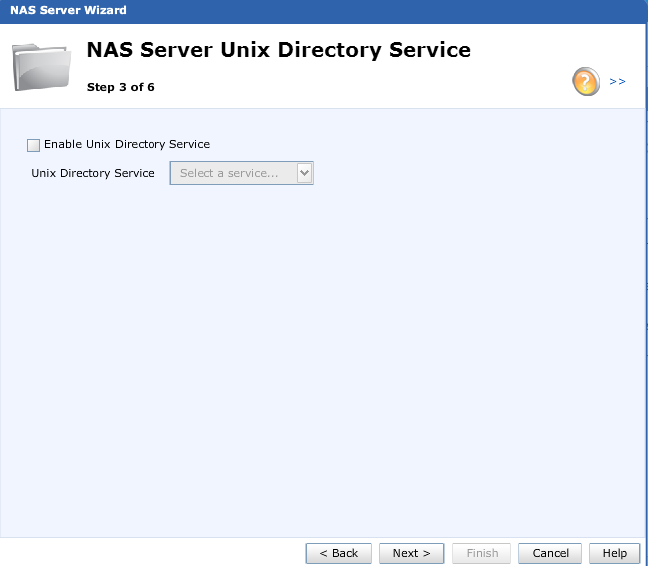

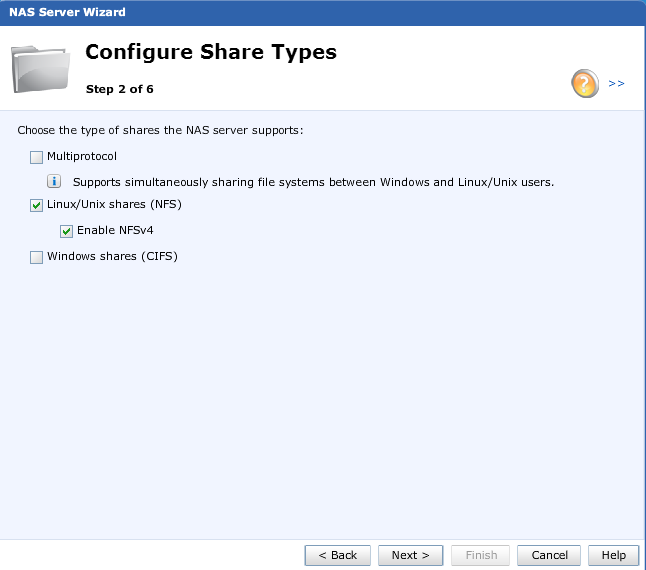

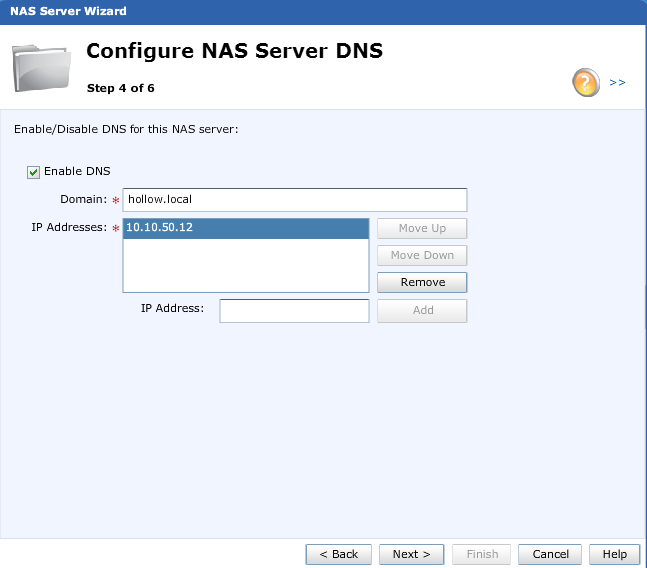

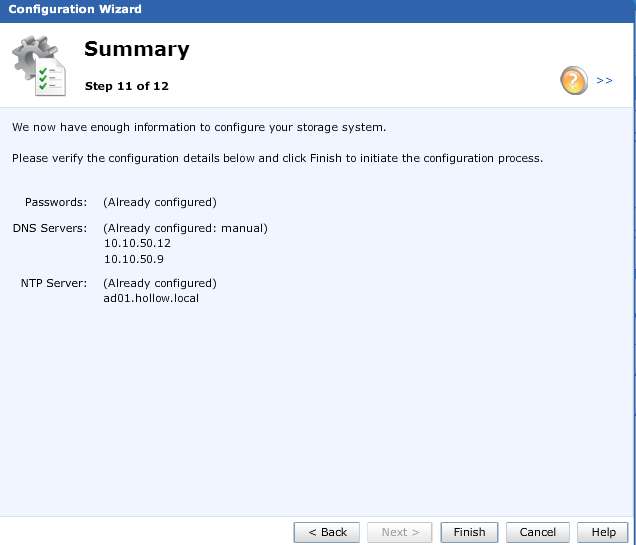

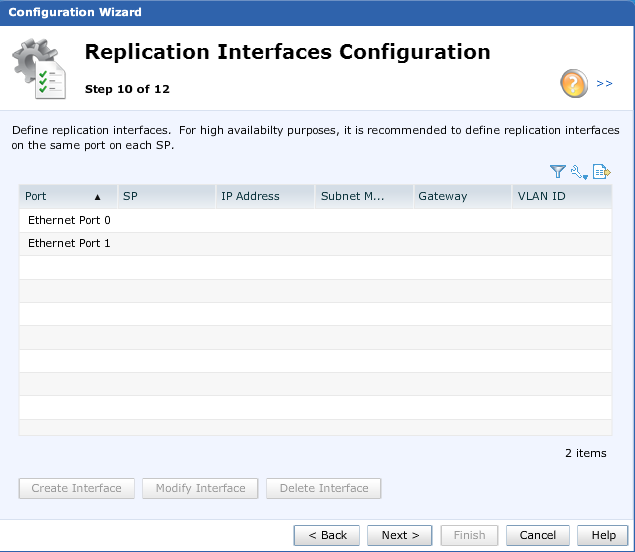

vvnxinstall14 Select NFS and I’ve added NFSv4. (Hey, a kid can dream right?)vvnxinstall15 Choose wheter to use the Unix Directory Service or not.  vvnxinstall16 Enable DNS or skip this step.  Click next.vvnxinstall17 Review the summary screen and click Finish.vvnxinstall18 Back to the original wizard, we can choose to setup replication interfaces.  I skipped this step and will revisit it later if I need it.vvnxinstall19 Review the Summary screen and click Finish.vvnxinstall20

vSphere Configuration

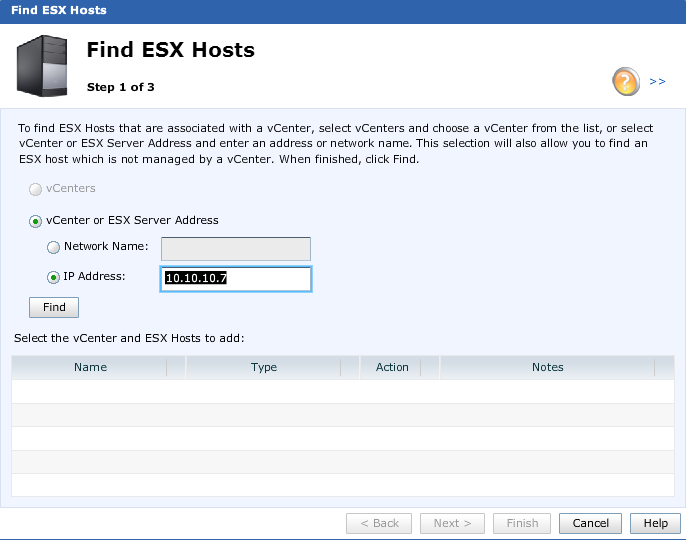

Now that the initial setup we can add some VMware Datastores.  Click on the Hosts tab, and then the VMware Hosts section.  Click the “Find ESX Hosts” button.  Add either an IP Address or DNS name of either individual ESXi hosts or vCenter.  Then, click “Find”.

vvnxinstall28

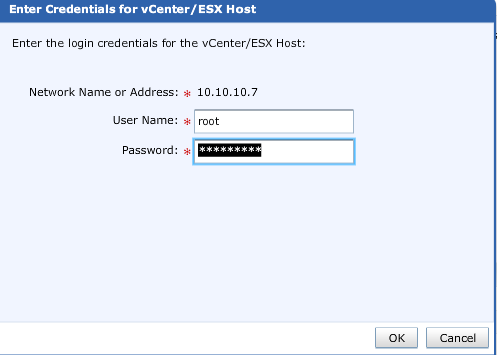

Enter credentials for the host or vCenter.  Click OK.  Afterwards review the summary screen and click Finish.vvnxinstall29

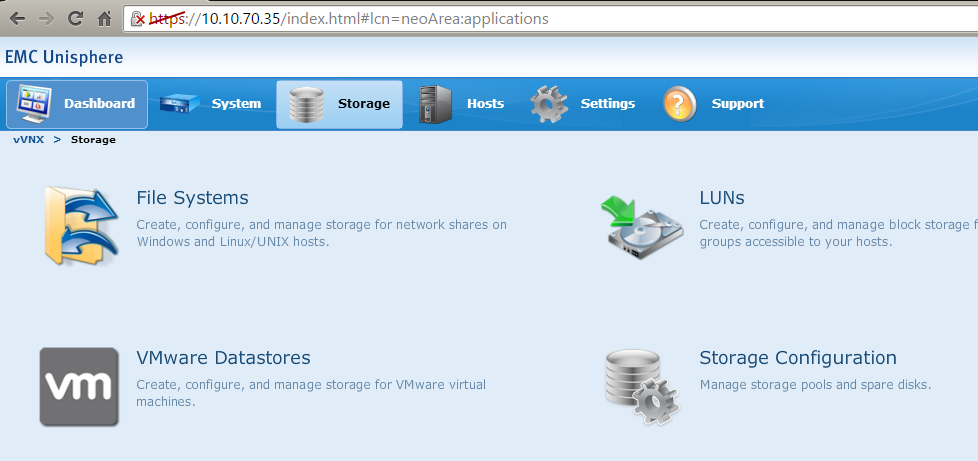

Click the Storage Tab and choose “VMware Datastores”.vvnxinstall21

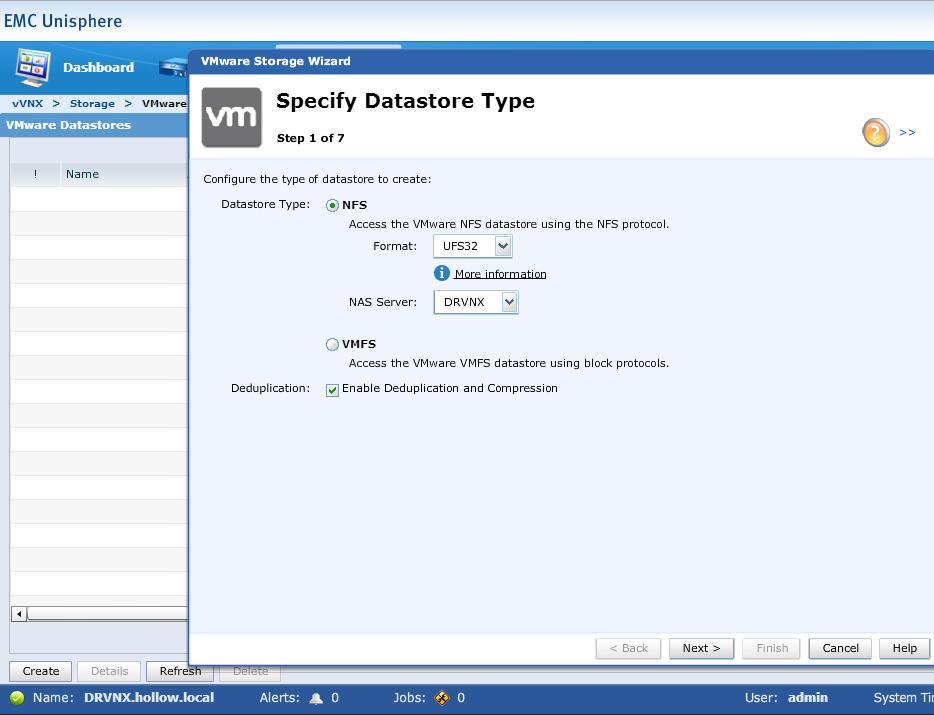

A new wizard opens.  We’ll select the type of datastore (VMFS for iSCSI or NFS for NAS).  I’ve also enabled Deduplication and Compression. Click Next.vvnxinstall22

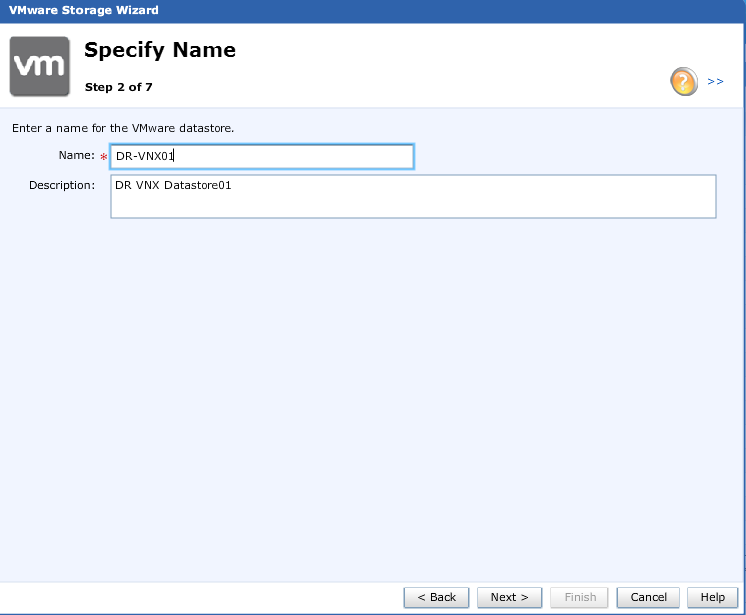

Give the datastore a name and description.  Click Next.
vvnxinstall23

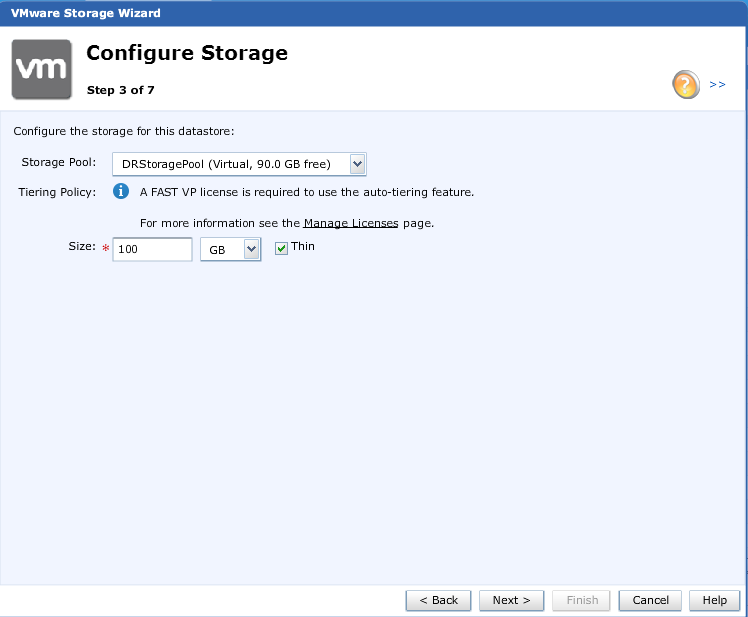

Select the storage pool for this datastore to live on.vvnxinstall24

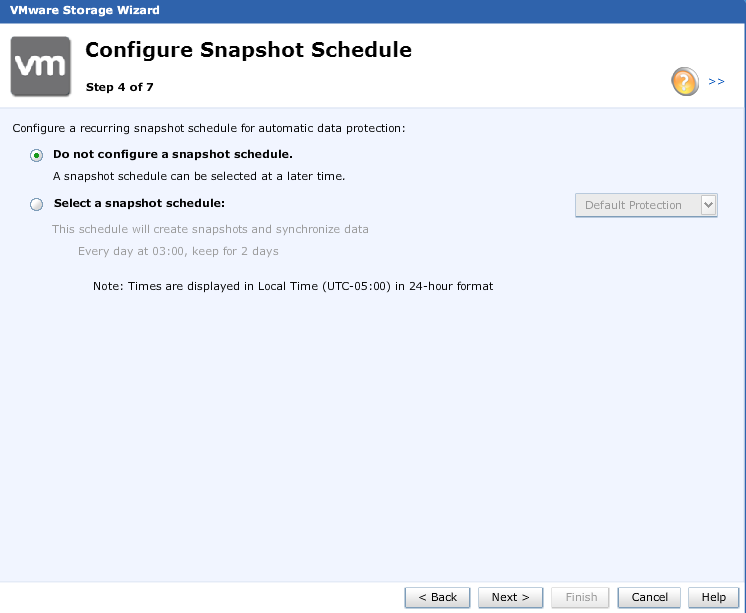

Configure a snapshot schedule if it tickles your fancy.  I skipped this.vvnxinstall25

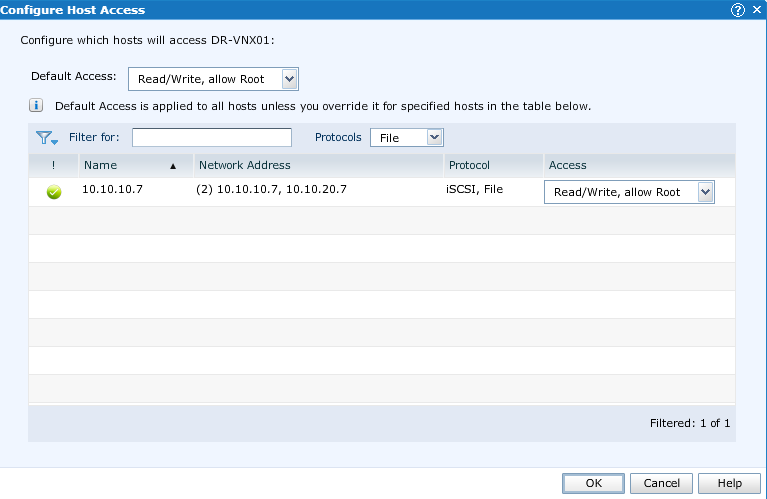

Select the hosts that will have access to this datastore and change the access to ReadWrite, allow Root.  Click OK.vvnxinstall26

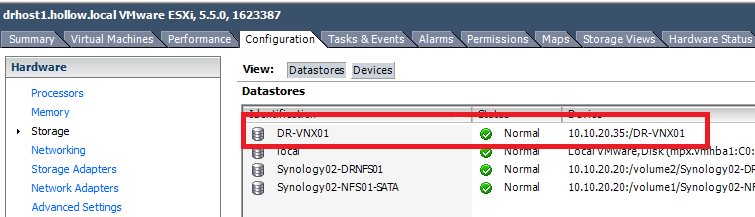

After the configuration finishes, it will create the NFS mount point and login to the hosts specified to add the datastore for you automatically.  Now you’re off and running with a new virtual storage appliance in your lab.vvnxinstall27
