HP Virtual Connect Networks
August 14, 2012I gave an overview of how HP blades are mapped to Virtual Connect Interconnect Modules in my last post. https://theithollow.com/2012/08/09/hp-virtual-connect-basics This post focus more on understanding the networks created through HP Virtual Connect Manager.
In the last post I described out blade NICs map to the Interconnect Bays in the back of an HP C7000 Chassis using the downlinks. Now let’s talk about how those NICs can get added to a specific Network. HP calls these networks inside of a c7000 chassis “vNets”.
vNets allow the chassis to pass traffic between blades and to the external uplinks in the Virtual Connect Interconnet Modules. These vNets can be created by clicking on the “Ethernet Networks” link from VC. Here, you can setup your uplinks, give it a name, and a description. Think of this much like a switched network, if two machines are on the same network, then they can communicate with each other (of course with correct settings, and without firewalls, etc).
Let’s look at an example of a set of networks we’d like to build in our c7000 Chassis. In this example we have four blades. All of them should connect to VLAN2 which is a vMotion, Live Migration or some sort of cluster heartbeat network. Two of our blades will need to connect to a network called VLAN1 (yes I know this is a security concern, it’s just an example) which is a network used by servers other than in our blade chassis. And lastly, we have two blades that need access to three other networks, such as VLAN3, VLAN4, VLAN5 which are also used outside of the blade chassis.
The picture below should give a good idea about we’re trying to build. As you can see, we have two vNets that have redundant uplinks, and a single vNet with zero uplinks.
VLAN2 vNET

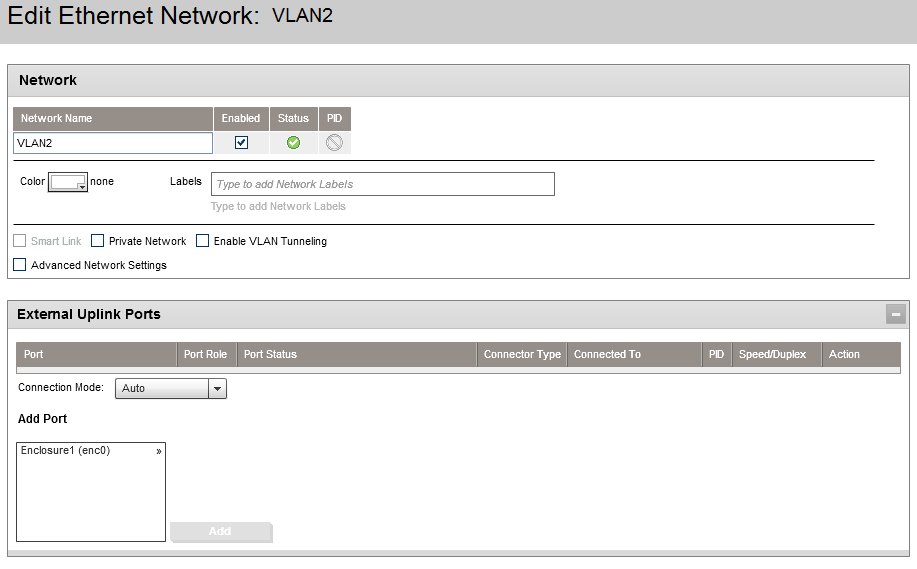

There is no reason for that traffic to ever leave the chassis. Only the blades inside of our chassis would need to use this network. So we can create our network, call it VLAN2, don’t assign any uplinks and then in our server profiles, assign each blade to use this network. Obviously, this is only relevant if you have a single chassis. If there are multiple enclosures, then your vMotion or Live Migration Network (vNET2) would need to have uplinks to vmotion between the enclosures.
VLAN1 vNET

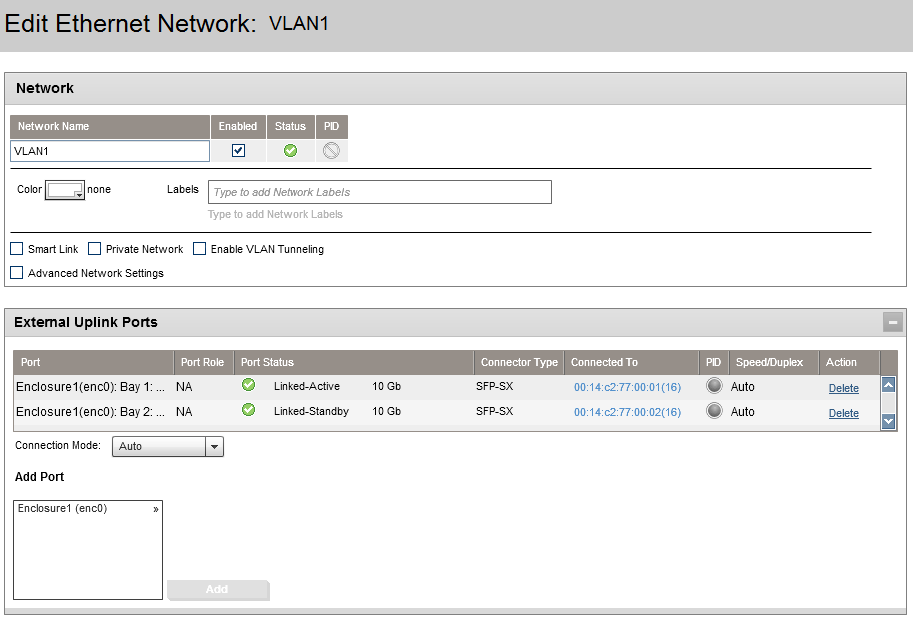

Next, we want to setup the VLAN1 vNET which does require access outside of the chassis. Let’s create another network, give it a name, and add some uplinks. Assign this server profile to blade1 and blade 2.
VLAN3,4,5 vNET
This network require a bit more configuration. In this case, we have one blade NIC, that is connected to a network with three different types of tagged packets that could be on it. In this case, we need to create a Shared Uplink Set (SUS). You can create a SUS by clicking the link on the left hand side of Virtual Connect Manager, right under the “Ethernet Networks” link we’ve been using in the previous examples.
To create a SUS, you give it a name and add uplinks like you would a regular vNet, but in this situation you also need to add the networks that will share this set of uplinks. In the case below I’ve added three networks and entered the associated VLAN ID.
Once you’ve created your SUS, you can go into your server profiles and choose “Multiple Networks” under the network name.

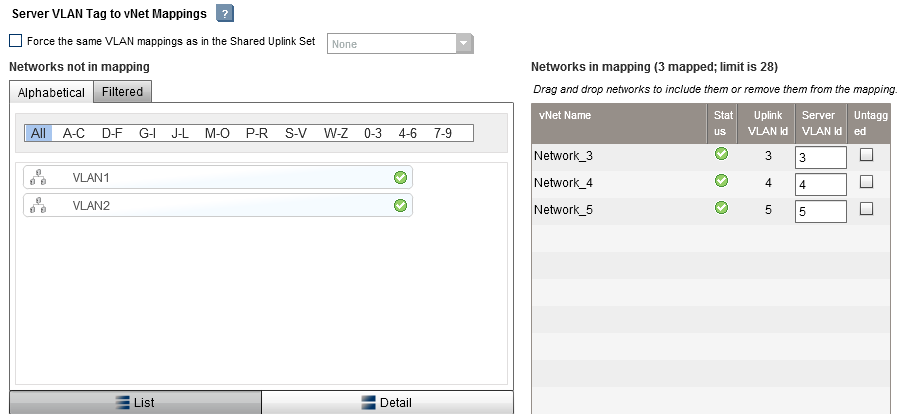

When you select Multiple Networks, you’ll be brought to a screen to allow you to select which networks will be mapped to the NIC.

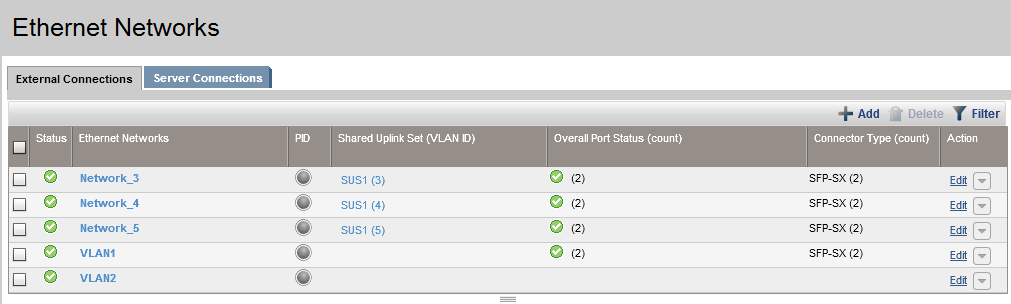

When it’s all said and done, I have networks that look like this, and match the original design.
Hi Eric,
Thanks a lot for neatly putting all together and helping to reduce the confusion.
Regards,
Thejas KV
Great explanation of VC configuration. Could you please fix the links to the images?
Images fixed. Must have gotten broken during a migration. Thanks for the feedback.
Under the heading “VLAN1 vNET”, it shows the External Uplink Ports with statuses of “Linked-Active” and “Linked-Standby”. I assume this is due to Spanning Tree blocking the port due to a network loop.
It would be nice to point this out explicitly (I’m just assuming).
By default members of the same vnet in different interconnects are Active-Standby. To make them both Active, create two separate Vnets and place the links in them. They can have the same VLAN just a different VNet. I hope this helps.
Hello Eric, Please i am working on a VC with 6 separate VLANS. I have virtual machines setup each with 5 NICS , 4 nics mapped to single vlan 1 – 5 and then the 6th NIC bundled as Vlan 5 and 6. After configuring the Vlans for the VMs i am unable to reach some of the Vlans, Please can you assist. I am ready to share some information with you.
Hi Eric, I’m confused on how on your statement “So we can create our network, call it VLAN2, don’t assign any uplinks and then in our server profiles, assign each blade to use this network.” How do I configure VLAN2 to be used by all the blades, can you elaborate on this please – new to HPE
Hi. I’ve been looking for a good VC /network connect KB for a while now and this is the best out there. Makes my job a lot easier with you easy to follow guides. I can’t thank you enough about now easy your guides are to understand too. Thank you heaps!
Thankyou for your clear explaination.
I have a strange issue related to using SUS as you have described as follows:
blade centre 1 has 2 sus defined sus1 and sus2
blade1 has selected vnet 1 configured on pnic3
blade1 has selected vnet 1 also configured on pnic4
I have blade16 also configured to use vnet1 only not as a selected network but as a vnet in a multiple networks configuration.
If I try and change blade1’s configuration to match blade16 i.e. from selected network to multiple networks then all the vms hosted on blade 1 stop responding to pings. I have raised this with HP who have escalated to L2. Current virtual connect firmware is upto date. As anyone come across this
